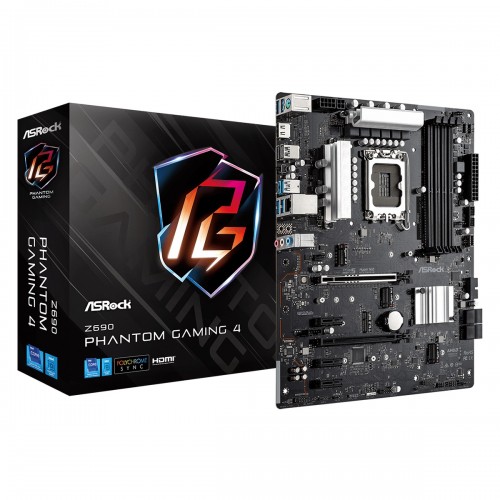

ASRock Z690 Phantom Gaming 4 12th Gen ATX Motherboard

ASRock Z690 Phantom Gaming 4 12th Gen ATX Motherboard
Out Of Stock
ASRock Z690 Phantom Gaming 4 12th Gen ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  2216
  • Brand: ASRock
  • Model: Z690 Phantom Gaming 4
Based on 0 reviews. - Write a review
  • Model: Z690 Phantom Gaming 4
  • Supports 12th Gen Intel Core Processors (LGA1700)
  • 9 Phase Dr.MOS Power Design
  • Supports DDR4 5000MHz (OC)
  • Graphics Output Options: HDMI
View more info
Specification
Motherboard Basic Info
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Motherboard Basic Information
Supported CPU - Supports 12th Gen Intel Core Processors (LGA1700) - 9 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel Z690
Expansion Slots
PCI - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Memory Specifications
Type Dual Channel DDR4 Memory Technology
Motherboard Memory Info
Supported Memory - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Motherboard Graphics Info
Graphics - Intel Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Connector & Ports (MB)
USB (s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection)
Internal I/O Ports - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
Warranty Information
Manufacturing Warranty 3 years
Description

ASRock Z690 Phantom Gaming 4 12th Gen ATX Motherboard

 The ASRock Z690 Phantom Gaming 4 Motherboard supports 12th Gen Intel Core Processors( LGA1700). It features 9 PhaseDr.MOS Power Design and it supports DDR4 5000 MHz( OC). It's ready to unleash the full eventuality of unborn high- end graphic cards. It has a blazing fast data transfer interface with a reversible USB Type- C design that fits the connector either way. USB3.2 Gen2x2 Type- C delivers up to 20 Gbps data transfer rate which is 2x as fast as the former generation.

  PCIe5.0 and High- SpeedM. 2 Result

The ASRock Z690 Phantom Gaming 4 motherboard supports the lighting speed of the rearmost PCIe5.0 standard. The rearmost PCI Express5.0 is able to perform a stirring bandwidth of 128GBps. It's able of accommodating multipleM. 2 storehouse bias, one of which can support PCI Runner4.0M. 2 SSD, it's able of performing twice the speed compared to the former 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 HyperM. 2( PCIe Gen4 x4), 1 HyperM. 2( PCIe Gen4 x4 & SATA3).

 Polychrome RGB Sync- certified

 ASRock Z690 Phantom Gaming 4 is equipped with onboard RGB heads and an nontransferable RGB title that allow the motherboard to be connected to compatible LED bias similar as strip, CPU suckers, coolers, lattice, and so on.

 Nahimic Audio

 The ASRock Z690 Phantom Gaming 4 is featured with Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details whether you're using headphones, a headset, external or internal speakers, via USB, Wi- Fi, analog affair, or indeed HDMI. It's also equipped with Realtek ALC8977.1 CH HD Audio Codec.

The ASRock Z690 Phantom Gaming 4 Motherboard has 03 times bond.
