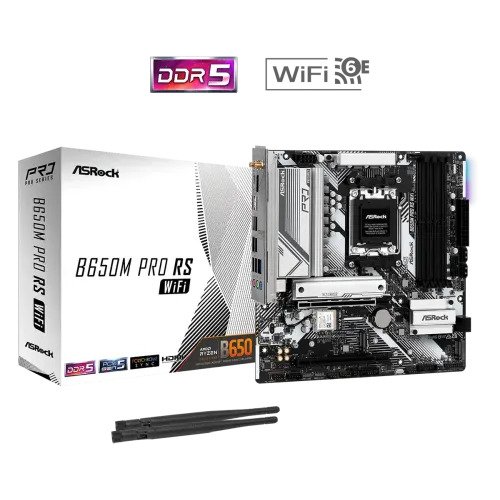

ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard

ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard
Upcoming
ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard
  • Stock: Upcoming
  • Product id:  3667
  • Brand: ASRock
  • Model: B650M Pro RS WiFi
  • Model: B650M Pro RS WiFi
  • Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Specification
Motherboard Basic Info
Supported CPU Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
Motherboard Basic Information
Chipset AMD B650
Expansion Slots
PCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots - 4 x DDR5 DIMM Slots
Supported Memory - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory Max. 256GB
Connectivity
Display Port 1x DisplayPort 1.4
Motherboard Graphics Info
Graphics Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports (MB)
HDMI 1x HDMI
USB (s) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Audio 3 x Audio jacks
Internal I/O Ports Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
Supported Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
Others
Special Features Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
Bundled Software Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty 3 Years Warranty
Description

ASRock B650M Pro RS WiFi AM5 Micro-ATX Motherboard

The ASRock B650M Pro RS WiFi AM5 Micro-ATX Motherboard is a high-performance platform designed for next-generation AMD Ryzen 7000 Series processors. Featuring the latest AM5 socket and DDR5 memory support, this motherboard delivers superior speed, bandwidth, and reliability, making it ideal for gaming, content creation, and high-performance PC builds.

With PCIe 5.0 support, the B650M Pro RS WiFi provides lightning-fast connectivity for next-gen graphics cards and NVMe SSDs, ensuring smooth gameplay, rapid load times, and future-proof expansion. Its robust power delivery system and high-quality components maintain stability under heavy workloads, allowing for reliable performance during intense gaming or multitasking sessions.

Built in a Micro-ATX form factor, this motherboard offers a compact design without compromising on features. Integrated WiFi 6 ensures fast and stable wireless connectivity, while multiple USB ports, M.2 slots, and expansion options provide extensive flexibility for peripherals and storage upgrades.

The ASRock B650M Pro RS WiFi combines cutting-edge technology with sleek aesthetics, making it a perfect choice for modern PC builds. Its durable PCB, efficient thermal design, and enhanced power solution ensure long-lasting performance and reliability.Whether you’re building a high-performance gaming rig, a powerful workstation, or a future-ready PC, the ASRock B650M Pro RS WiFi AM5 Micro-ATX Motherboard offers a balance of speed, connectivity, and durability, making it a top choice for AMD AM5 builds.
