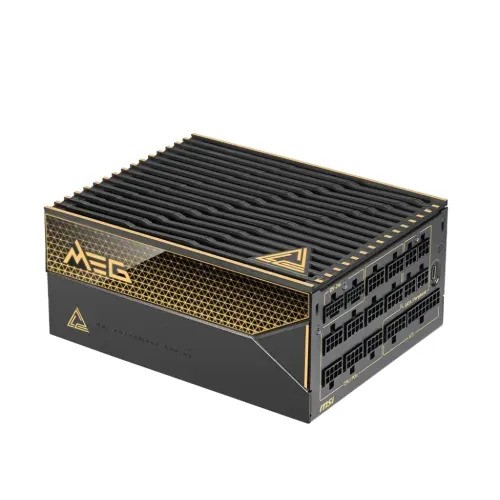

The MSI MEG Ai1600T PCIE5 1600W 80 Plus Titanium Fully Modular Power Supply is a flagship-grade PSU engineered for extreme performance, stability, and compatibility with today’s most power-hungry systems. Ideal for enthusiasts and professionals, the MEG Ai1600T supports the latest NVIDIA GeForce RTX 30, 40, and 50 Series GPUs, thanks to its dual-native 12V-2x6 PCIe 5.1 connectors, each capable of delivering up to 600W [1] .Key Features:
- High Efficiency: Certified with an 80 Plus Titanium rating, the MEG Ai1600T delivers up to 94% efficiency at typical loads, reducing energy consumption and heat generation [1] .
- Full Modular Design: The fully modular architecture allows users to connect only the cables they need, promoting better airflow and easier cable management.
- Advanced Cooling: Equipped with a 135mm double-ball bearing fan, it ensures optimal cooling performance while maintaining quiet operation.
- Comprehensive Protection: The PSU includes multiple safety features such as Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Surge & Inrush Protection (SIP), and No Load Operation (NLO) [2] .
- Robust Connectivity: It offers a variety of connectors, including:
- 1x 24-pin ATX
- 2x 4+4-pin EPS
- 2x 16-pin PCIe 5.1 (12VHPWR)
- 9x 6+2-pin PCIe
- 8x SATA
- 8x Molex
These connectors ensure compatibility with a wide range of components and peripherals [1] .
Specifications:
- Power Output: 1600W continuous power
- Peak Power: Up to 3840W for short durations (100μs) [2]
- Input Voltage: 100-240V
- Frequency Range: 50-60Hz
- Dimensions: 190 x 150 x 86 mm
- MTTF: 150,000 hours at 25°C [2]
The MSI MEG Ai1600T PCIE5 is an excellent choice for users seeking a reliable and efficient power supply that can handle the demands of high-performance systems. Its combination of advanced features, robust protection mechanisms, and future-ready standards make it a solid investment for any serious PC builder.
