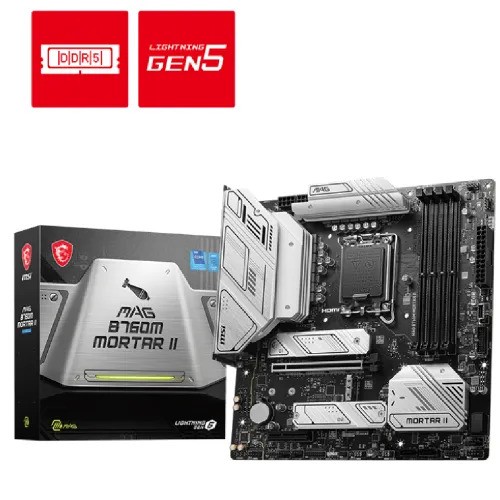

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
Save: 2790৳
MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard
  • Stock: In Stock
  • Price:  25,700৳
  • Regular Price:  28,490৳
  • Product id:  3737
  • Brand: MSI
  • Model: MAG B760M MORTAR WIFI II
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: MAG B760M MORTAR WIFI II
  • Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
  • Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5Gbps LAN, Wi-Fi 6E
View more info
Specification
Motherboard Basic Info
Form Factor mATX 243.84mmx243.84mm
Motherboard Basic Information
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Expansion Slots
PCI 1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
Expansion Slots
M.2 Socket 3x M.2 slots
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots 4 x DIMM
Supported Memory Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Motherboard Graphics Info
Graphics Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports (MB)
HDMI 1x HDMI 2.1
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 2.5Gbps LAN
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
Warranty Information
Manufacturing Warranty 3 years
Description

MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard

The MSI MAG B760M MORTAR WIFI II Motherboard is a top-tier solution for gaming and content production aficionados, supporting Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors built for the LGA 1700 socket. With DDR5 compatibility, this motherboard embraces memory technology's future, allowing for remarkable memory rates of up to 7800+(OC) MHz, assuring a fluid multitasking experience and improved system responsiveness. The improved 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost all work together to create a stable and overclocking-friendly environment. The motherboard also has a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2 x2 for customers who want high data transfer speeds and compatibility with the newest gaming accessories. The premium thermal solution with the expanded heatsink design and M.2 Shield Frozr offers top performance and dependability when it comes to maintaining appropriate temperatures during strenuous gaming sessions or resource-intensive work. The addition of Audio Boost technology improves the user experience even further by offering studio-grade sound quality for gaming, music, and multimedia applications. The motherboard's high-quality construction is obvious in its 6-layer PCB, which is manufactured from 2oz thicker copper and server-grade level material. This improves not only the system's resilience and stability but also its overall lifetime. In conclusion, the MSI MAG B760M MORTAR WIFI II Motherboard smoothly integrates cutting-edge technology with an emphasis on performance, dependability, and user-friendly features, making it an excellent choice for individuals looking for a high-performance motherboard for their gaming or video production system.

Buy MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard Shop in BD

In Bangladesh, you can get the original MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard From Sell Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Sell Tech Shop to get yours at lowest price. The MSI MAG B760M MORTAR WIFI II Motherboard comes with 3 year
