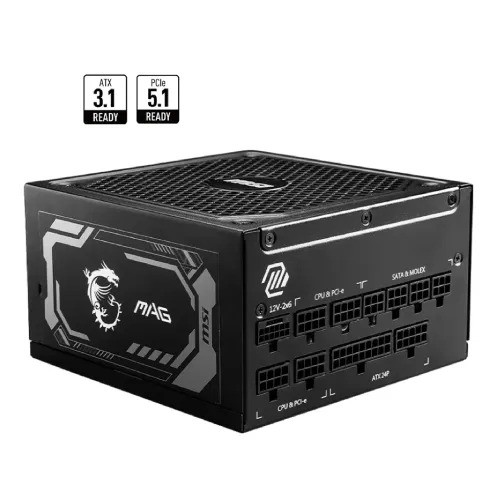

The MSI MAG A1000GL PCIE5 1000W 80 Plus Gold Full Modular Power Supply is a high-performance, future-ready PSU designed to meet the demands of modern gaming and professional computing. With its robust 1000W output and compliance with the latest ATX 3.1 and PCIe 5.1 standards, it ensures compatibility with cutting-edge components, including NVIDIA GeForce RTX 40 series GPUs.
Key Features:
- High Efficiency: Certified with an 80 Plus Gold rating, the MAG A1000GL delivers up to 90% efficiency at typical loads, reducing energy consumption and heat generation.
- Full Modular Design: The fully modular architecture allows users to connect only the cables they need, promoting better airflow and easier cable management.
- Advanced Cooling: Equipped with a 135mm fluid dynamic bearing fan, it ensures optimal cooling performance while maintaining quiet operation.
- Comprehensive Protection: The PSU includes multiple safety features such as Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP), safeguarding your system against potential electrical issues.
- Robust Connectivity: It offers a variety of connectors, including:
- 1x 24-pin ATX
- 2x 4+4-pin EPS
- 1x 16-pin PCIe (12VHPWR)
- 6x 6+2-pin PCIe
- 12x SATA
- 4x Molex
- 1x FDD
These connectors ensure compatibility with a wide range of components and peripherals.
Specifications:
- Power Output: 1000W continuous power
- Peak Power: Up to 2000W for short durations (100μs
- Input Voltage: 100-240V~
- Frequency Range: 50-60Hz
- Dimensions: 150 x 150 x 86 mm
- MTTF: 150,000 hours at 25°C
The MSI MAG A1000GL PCIE5 is an excellent choice for users seeking a reliable and efficient power supply that can handle the demands of high-performance systems. Its combination of advanced features, robust protection mechanisms, and future-ready standards make it a solid investment for any serious PC builder.
