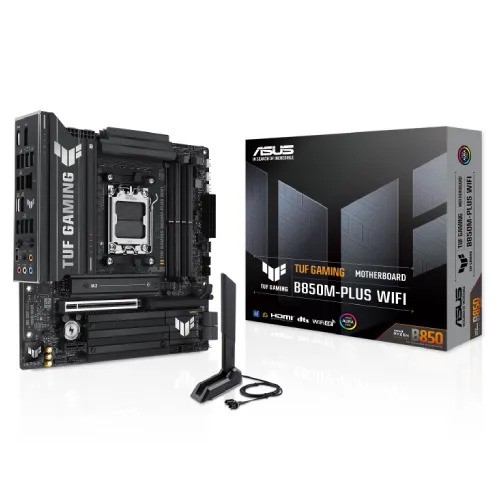

Asus TUF GAMING B850M-PLUS WIFI micro-ATX Motherboard

Asus TUF GAMING B850M-PLUS WIFI micro-ATX Motherboard
Save: 3060৳
Asus TUF GAMING B850M-PLUS WIFI micro-ATX Motherboard
  • Stock: In Stock
  • Price:  36,000৳
  • Regular Price:  39,060৳
  • Product id:  4175
  • Brand: Asus
  • Model: TUF GAMING B850M-PLUS WIFI
Payment Option
Add to Cart
  • Model: TUF GAMING B850M-PLUS WIFI
  • Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
  • Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: Realtek 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
Specification
Motherboard Basic Info
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B850
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Expansion Slots
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot
Expansion Slots
M.2 Socket 3 x M.2
Memory Specifications
Type DDR5
Motherboard Memory Info
Supported Memory max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 256GB
Motherboard Graphics Info
Graphics 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports (MB)
HDMI 1x HDMI
USB (s) Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A.
Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Others
Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen2 headers
Warranty Information
Manufacturing Warranty 3 Years Warranty
Description

 The Asus TUF GAMING B850M-PLUS WIFI is a powerful and reliable Micro-ATX motherboard designed to support the latest AMD AM5 processors. Built with durability, performance, and future-readiness in mind, this motherboard is part of ASUS's renowned TUF Gaming lineup, ensuring excellent thermal performance, military-grade components, and long-term stability. Whether you're a gamer, content creator, or enthusiast looking for a compact yet feature-rich board, the B850M-PLUS WIFI delivers exceptional value.

Powered by the B850 chipset, this board is fully compatible with AMD Ryzen 8000 and future AM5 CPUs, supporting the latest DDR5 memory for faster speeds and increased bandwidth. With dual-channel memory architecture, users can install up to 128GB of RAM, making it ideal for gaming, multitasking, and demanding applications.

The inclusion of Wi-Fi 6E and 2.5Gb LAN ensures ultra-fast, stable internet connectivity for both wired and wireless environments. These features make the TUF GAMING B850M-PLUS WIFI perfect for online gaming, streaming, and productivity in connected environments.

For graphics and expansion, the board features a PCIe 5.0 x16 slot, offering next-gen support for GPUs and NVMe SSDs. With multiple M.2 slots, including support for PCIe 4.0 storage devices, your system will benefit from rapid boot times, fast data transfers, and responsive application loading.

In terms of cooling and durability, the TUF B850M-PLUS WIFI comes with large VRM heatsinks, a reinforced backplate, and thermal padding for efficient heat dissipation. Military-grade TUF components such as TUF chokes and capacitors ensure long-lasting reliability and power delivery.

Rear I/O includes USB 3.2 Gen 2 Type-C, HDMI, DisplayPort, and audio jacks, giving users comprehensive connectivity options. Additionally, ASUS Armoury Crate software offers complete system management with intuitive tools for fan control, RGB customization, and real-time hardware monitoring.

Overall, the Asus TUF GAMING B850M-PLUS WIFI Micro-ATX Motherboard is the perfect blend of performance, stability, and compact design. It offers next-gen connectivity, excellent build quality, and premium gaming features at a competitive price, making it an ideal choice for budget-conscious builders without compromising on power.
