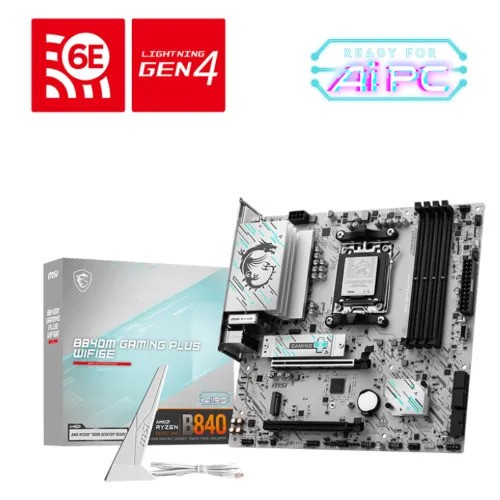

MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard

MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard
Save: 2060৳
MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard
  • Stock: In Stock
  • Price:  19,100৳
  • Regular Price:  21,160৳
  • Product id:  5301
  • Brand: MSI
  • Model: B840M GAMING PLUS WIFI6E
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: B840M GAMING PLUS WIFI6E
  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
  • Supported RAM: 4x DDR5, up to 8000 (OC) MT/s, Max 256GB
  • Graphics Output: 1x HDMI 2.1, Support Maximum Resolution of 4K 60Hz
  • Features: 2x M.2, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
View more info
Specification
Motherboard Basic Info
Form Factor mATX 243.84mmx243.84mm
Motherboard Basic Information
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Expansion Slots
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Expansion Slots
PCI 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Motherboard Memory Info
Supported Memory Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 256GB
Connector & Ports (MB)
HDMI 1x HDMI 2.1
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Others
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Warranty 3 Years Warranty
Description

MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard

The MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard is designed for gamers and PC enthusiasts who demand high performance, advanced connectivity, and reliability in a compact micro-ATX form factor. Powered by the AMD B840 chipset, it fully supports the latest AMD Ryzen™ processors for the AM5 socket, providing smooth gaming, fast multitasking, and future-ready upgrade potential.

With DDR5 memory support, the motherboard delivers higher bandwidth and faster speeds for seamless gaming and efficient multitasking. PCIe 4.0 slots allow high-performance graphics cards and NVMe SSDs to run at full speed, while M.2 slots with Shield Frozr keep storage cool under heavy workloads.

Connectivity is enhanced with Wi-Fi 6E, 2.5G LAN, and multiple USB ports, ensuring low-latency online gaming and fast data transfers. MSI-exclusive features like Core Boost, Memory Boost, Audio Boost, and an easy-to-use BIOS optimize CPU and memory performance while enhancing audio quality. Its sleek gaming design makes it ideal for modern compact builds.

Whether building a competitive gaming rig or a powerful AMD system, the MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard delivers speed, stability, and advanced features for an exceptional gaming experience.

Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard in Bangladesh?

The latest price of MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard in Bangladesh is 19,100৳ . You can buy the MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard at best price from our website or visit any of our showrooms.

Tags: MSI B840M GAMING PLUS WIFI6E , MSI B840 motherboard , AM5 motherboard , DDR5 motherboard , AMD B840 chipset , MSI gaming motherboard , Ryzen AM5 motherboard , mATX motherboard , PCIe 4.0 motherboard , Wi-Fi 6E motherboard , motherboard price in Bangladesh
