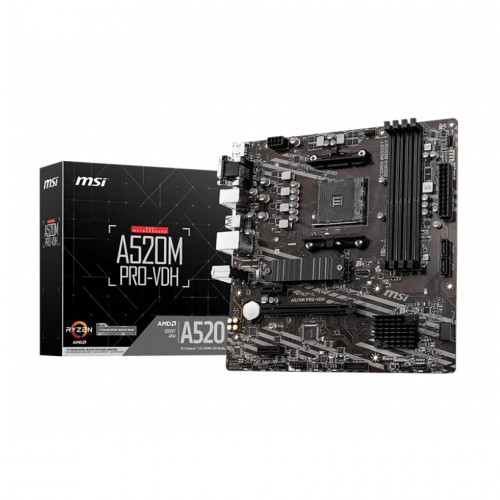

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

Upcoming

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

Stock: Upcoming
Product id: 3387
Brand: MSI
Model: A520M PRO-VDH

Based on 0 reviews. - Write a review

Model: A520M PRO-VDH
Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors
Supports DDR4, up to 4400(OC) MHz
M.2 Shield Frozr & Turbo M.2
2oz Thickened Copper PCB

View more info

Specification
Review

Specification

Motherboard Basic Info
PCI	2x PCIe 3.0 x16 slots 1x PCIe 3.0 x1 slot
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Motherboard Basic Information
Supported CPU	AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.01 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Chipset	AMD A520 Chipset
Expansion Slots
M.2 Socket	1x M.2 slot (Key M) (from AMD Processor)
Graphics Specifications
Max Shared Memory	16GB
Motherboard Memory Info
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	128GB
Motherboard Memory Info
Type	Dual-channel memory architecture
Connectivity
Display Port	1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
VGA	1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Motherboard Graphics Info
Graphics	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Connector & Ports (MB)
HDMI	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H 1Gbps LAN controller
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 1x Flash BIOS button
Warranty Information
Manufacturing Warranty	03 Years Warranty
