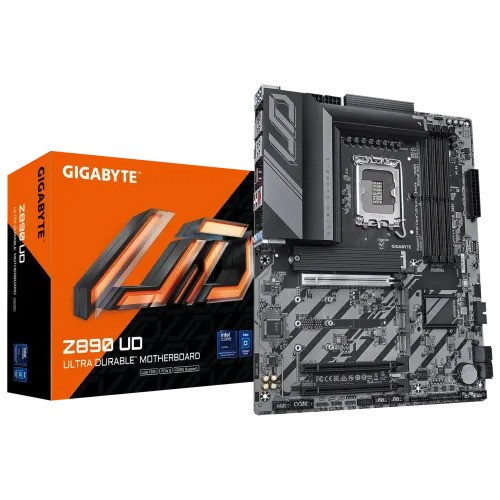

Gigabyte Z890 UD LGA 1851 ATX Motherboard

Gigabyte Z890 UD LGA 1851 ATX Motherboard
Save: 2400৳
Gigabyte Z890 UD LGA 1851 ATX Motherboard
  • Stock: In Stock
  • Price:  34,000৳
  • Regular Price:  36,400৳
  • Product id:  4644
  • Brand: Gigabyte
  • Model: Z890 UD
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: Z890 UD
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
  • Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
  • Graphics Output: 1x USB4 USB Type-C, 1x DisplayPort
  • Features: 4x M.2 slots, 2.5GbE LAN, USB4 Type-C with DP-Alt, DisplayPort
View more info
Specification
Motherboard Basic Info
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Motherboard Basic Information
Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset Intel Z890 Express Chipset
Expansion Slots
PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Expansion Slots
M.2 Socket CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB)
Memory Specifications
Type DDR5
Motherboard Memory Info
Supported Memory Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version
Connector & Ports (MB)
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 3 x audio jacks
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
Others
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Manufacturing Warranty 3 Year
Description
  •  The Gigabyte Z890 UD LGA 1851 ATX Motherboard is a high-performance, future-ready platform designed for next-gen Intel systems, offering top-tier features, expandability, and stability. With support for LGA 1851 socket CPUs—including Intel Core Ultra series—it’s tailored to power the latest compute and AI workloads.

  • Cutting-Edge Memory & Performance
  • Built for DDR5 memory, the Z890 UD supports up to 256 GB across 4 DIMM slots, with overclocking potential into high frequency ranges (e.g. DDR5‑8800 OC) [1] . With its digital twin 12+1+2 VRM design and robust power delivery, it ensures stable CPU and memory performance even under demanding loads [2] .

  • Expansion & Storage
  • For high-speed storage, the motherboard offers four M.2 slots, including at least one PCIe 5.0 x4 M.2 for bleeding-edge NVMe SSDs [2] . SATA III ports are also available for legacy drives. In terms of expansion, the board includes a PCIe 5.0 x16 slot for graphics cards or accelerator cards [1] , along with additional PCIe slots for further expansions.

  • Connectivity & Networking
  •  Connectivity is well covered with USB4 Type‑C (DP‑Alt), USB 3.2 Gen 2 / Gen 1, and comprehensive IO options [2] . For networking, the board includes 2.5GbE LAN and modern wireless options in WiFi editions. The UD variant offers fast wired networking with high throughput and low latency [2] .

  • Thermal & Cooling Design
  • Gigabyte equips the Z890 UD with advanced VRM Thermal Armor and full MOSFET heatsinks to manage heat dissipation effectively [2] . M.2 Thermal Guard also helps keep NVMe SSDs cool under heavy I/O. The Smart Fan 6 system enables fine-tuned fan curves and thermal control for both air and liquid cooling setups [2] .

  • BIOS & Software Features
  • Its Q‑Flash Plus support allows BIOS updates without CPU or memory installed, simplifying setup and recovery. The motherboard also features utilities like AI PerfDrive, which offers performance tuning presets and automated optimization [2] . The firmware supports multiple themes, auto scanning, and intuitive UI design.

  • Durability & Build Quality
  • True to Gigabyte’s Ultra Durable branding, this board uses high-quality capacitors, reinforced slots, and anti-sulfur resistors. PCIe EZ-Latch technology enables tool-free insertion and removal of graphics cards, making installation and upgrades easier .
  •  Ideal Use Cases
  • - High-end gaming rigs with DDR5 memory and powerful graphics
  • - Content creation / rendering / AI workloads leveraging PCIe 5.0 and fast storage
  • - Future-proof desktop platforms ready for Intel’s evolving CPU generations
  • - Power user / workstation builds needing reliability, connectivity, and thermal control
