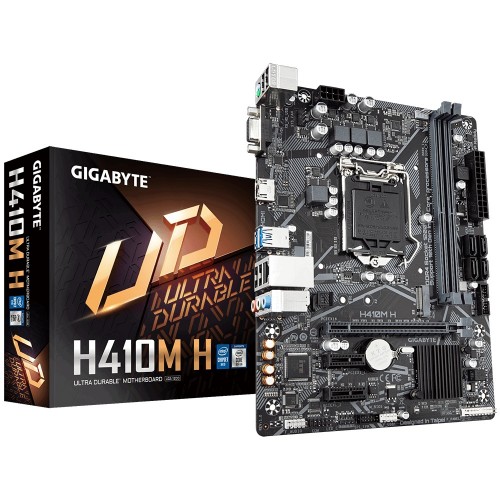

Gigabyte H410M H 10th Gen Micro ATX Motherboard

Gigabyte H410M H 10th Gen Micro ATX Motherboard
Out Of Stock
Gigabyte H410M H 10th Gen Micro ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  675
  • Brand: Gigabyte
  • Model: Gigabyte H410M H Motherboard
Based on 0 reviews. - Write a review
  • Model: H410M H
  • Support 10th Gen i3,i5,i7
  • 8-Channel HD Audio
  • Smart Fan 5 features
  • Anti-Sulfur Resistors Design
View more info
Specification
Motherboard Basic Info
PCI 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Motherboard Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU
Chipset Intel H410 Express Chipset
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Memory Specifications
Type Dual-channel architecture
Graphics Specifications
Max Shared Memory 512MB
Motherboard Memory Info
Slots 2 x DDR4 DIMM
Supported Memory Intel® Core™ i9/i7 processors: Support for DDR4 2933/ 666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Connectivity
HDMI 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Connector & Ports (MB)
USB (s) 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors
Others
Special Features Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software Support for Windows 10 64-bit
Warranty Information
Manufacturing Warranty 03 Years
Description

Gigabyte H410M-H Motherboard For 10th Gen Intel Core i3,i5,i7 Processor

Build a Desktop Computer With Gigabyte H410M-H 10th Gen Intel Core i3,i5,i7 Processor Motherboard. Are You Want to Know What is the Latest Price of the Gigabyte H410M Motherboard? The Motherboard Specification is Given Below

  • Model: H410M H
  • Support 10th Gen i3,i5,i7
  • 8-Channel HD Audio
  • Smart Fan 5 features
  • Anti-Sulfur Resistors Design
