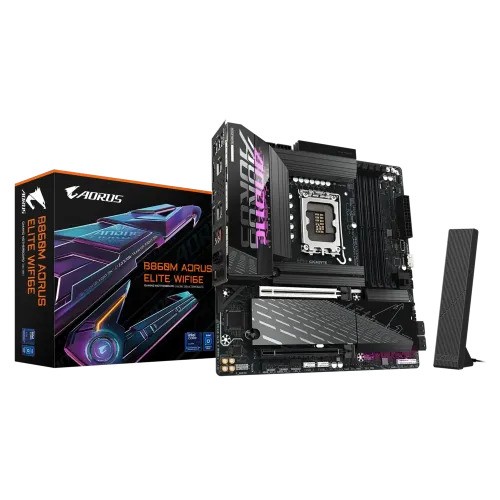

GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard

GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard
Save: 3320৳
GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard
  • Stock: In Stock
  • Price:  32,700৳
  • Regular Price:  36,020৳
  • Product id:  4645
  • Brand: Gigabyte
  • Model: B860M AORUS ELITE WIFI6E
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: B860M AORUS ELITE WIFI6E
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Socket
  • Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
  • Graphics Output: 2x HDMI, 1x DisplayPort
  • Features: 3x M.2, Intel Wi-Fi 6E, Bluetooth 5.3
View more info
Specification
Motherboard Basic Info
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Motherboard Basic Information
Supported CPU Intel Core Ultra Processors L3 cache
Chipset Intel B860 Express Chipset
Expansion Slots
PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots
M.2 Socket CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
Maximum Memory Up to 256 GB (64 GB single DIMM capacity)
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
Connector & Ports (MB)
HDMI 2 x HDMI
USB (s) CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x USB4® USB Type-C® port (DisplayPort*) 1 x HDMI port* 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
Others
Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Manufacturing Warranty 3 Year Warranty
Description

The GIGABYTE B860M AORUS ELITE WiFi6E is a premium Micro ATX motherboard built to support Intel’s LGA1851 platform, offering a powerful, compact, and future-ready foundation for gaming, content creation, and high-end computing. With its blend of cutting-edge features, robust power delivery, and advanced connectivity, this board is ideal for users seeking top-tier performance in a smaller form factor.

Next-Gen Compatibility & Memory Support

At its core lies the Intel B860 chipset, fully compatible with Intel Core Ultra processors, making it ideal for modern workloads and next-generation architectures. [1]  The board supports DDR5 memory across four DIMM slots, with native support for speeds up to DDR5‑5600 and overclocked profiles beyond 9200 MT/s depending on modules. [1]  With a maximum capacity of 256 GB, it offers ample headroom for demanding multitasking, gaming, and creative workloads. [2]

Storage & Expansion

The B860M AORUS ELITE offers excellent storage flexibility. It features three M.2 slots—one supporting PCIe 5.0 x4, and two supporting PCIe 4.0 x4, giving you high‑speed NVMe options. [3]  Additionally, it provides four SATA III ports for traditional SSDs and HDDs. [2]  Expansion is handled through a PCIe 5.0 x16 slot for discrete graphics, plus a PCIe 4.0 x4 slot for add-on cards. [3]

Connectivity & Networking

This motherboard shines in connectivity. It comes with WiFi 6E (802.11ax) built in, enabling access to the 6 GHz band for faster, lower-latency wireless networking. [3]  It also includes a 2.5 GbE LAN port, ideal for high-speed wired connections. [3]  On front and rear I/O, you’ll find USB4 Type‑C with DisplayPort Alt mode, HDMI, DisplayPort, and multiple USB 3.2 Gen1 and Gen2 ports. [3]

Thermal & Power Design

To maintain stability even under heavy loads, the board employs a 12+1+2 twin digital VRM design, featuring premium components and a 6-layer PCB with 2× copper traces. [3]  Thermal management is enhanced by VRM Thermal Armor, M.2 Thermal Guards, and robust heatsinks. [3]  The Smart Fan 6 system allows custom fan curves and advanced cooling control, supporting both PWM/DC fans and pumps. [3]
