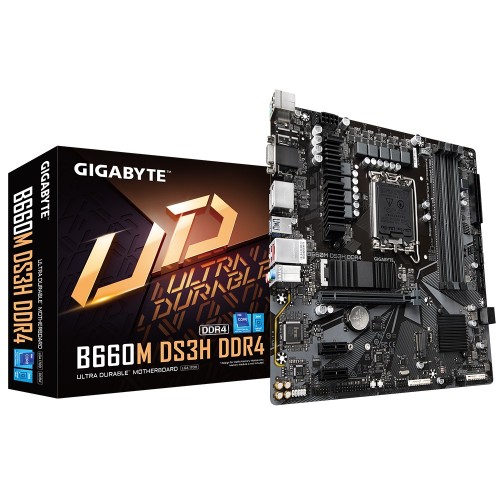

Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard

Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard
Out Of Stock
Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  2130
  • Brand: Gigabyte
  • Model: B660M DS3H DDR4
Based on 0 reviews. - Write a review
  • Model: B660M DS3H DDR4
  • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
  • Fast 2.5 GbE LAN with Bandwidth Management​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard​​
View more info
Specification
Motherboard Basic Info
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Motherboard Basic Information
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel B660 Express Chipset
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Type DDR4
Motherboard Memory Info
Slots 4 x DDR DIMM sockets
Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Connectivity
HDMI 1 x HDMI port
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to 4 displays at the same time
Connector & Ports (MB)
USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Others
Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 years
Description

Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard

 The Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard comes with LGA1700 socket which supports 12th Gen Intel Core Series Processors. It comes with Dual ChannelNon-ECC Unbuffered DDR4, 4 DIMMs. It features 6 2 1 Phases Mongrel Digital VRM with MOS Heatsink. It's a Completely Covered Thermal Design with High Coverage MOSFET Heatsinks. It's equipped with Fast2.5 GbE LAN with Bandwidth Management and DualUltra-Fast NVMe PCIe4.0 x4M. 2 with Thermal Guard. It offers BinaryUltra-Fast NVMe PCIe4.0 x4M. 2 with Thermal Guard. It haspre-installed IO Shield for easy and quick installation. It comes with RGB FUSION2.0 withMulti-Zone Nontransferable LED Light Show Design, Supports Nontransferable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Detectors, Mongrel Addict Heads with Addict STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. The Gigabyte B660M DS3H DDR4 comes with 3 times of bond.


Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard in Bangladesh?

The Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard is Out Of Stock now. You can buy the Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.
