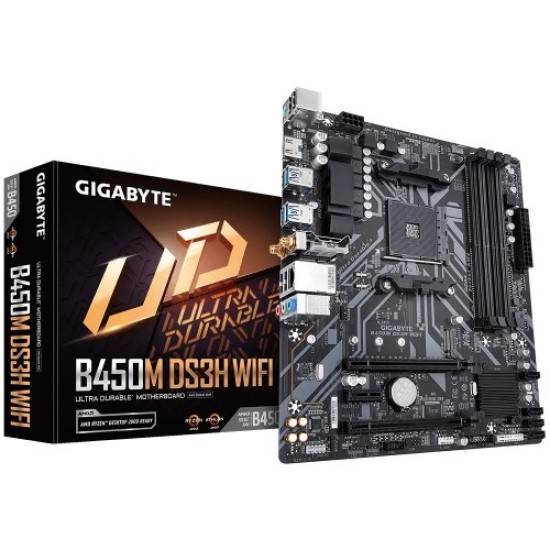

Gigabyte B450M DS3H WIFI AM4 AMD Micro ATX Motherboard

Gigabyte B450M DS3H WIFI AM4 AMD Micro ATX Motherboard
MEGA OFFER save 1900 ৳
Gigabyte B450M DS3H WIFI AM4 AMD Micro ATX Motherboard
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B450M DS3H WIFI
  • Warranty: 3Year
Featured Description:
  • Model: B450M DS3H WIFI
  • Supported Processor: AMD Ryzen 5000/ 5000 G/ 3rd Gen / 2nd Gen / 1st Gen/ 2nd Gen
  • Supported Memory: Dual Channel DDR4, 4 DIMMs
  • Intel Dual Band 802.11ac WIFI & BT 4.2
  • High Quality Audio Capacitors
    • Based on 0 reviews. - Write a review
    Add to Cart
    Buy Now Ask Question
    WishList Compare
    👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

    Specification

    Motherboard Basic Info
    BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Motherboard Basic Information
    Supported CPU AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors (Please refer "CPU Support List" for more information.)
    Chipset AMD B450
    Expansion Slots
    PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
    Expansion Slots
    M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
    Memory Specifications
    Type Dual channel memory architecture
    Motherboard Memory Info
    Supported Memory Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
    Motherboard Graphics Info
    Graphics Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon
    Connector & Ports (MB)
    HDMI 1 x HDMI port
    USB (s) CPU: 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
    Warranty Information
    Manufacturing Warranty 03 years

    Description

    Gigabyte B450M DS3H WIFI AM4 AMD Micro ATX Motherboard

     Gigabyte B450M DS3H WIFI Supports with AMD Ryzen 5000 series/ Ryzen 5000 G- Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors and Dual ChannelNon-ECC Unbuffered DDR4, 4 DIMMs. This motherboard featured with Intel Dual Band802.11 ac WIFI & BT4.2. The onboard802.11 ac WIFI module from Intel supports Binary Band and over to 433 Mbps, 3x briskly WIFI speed which is faster than802.11 n and also support BLUETOOTH4.2. The Gigabyte B450M DS3H WIFI comes withUltra-Fast PCIe Gen3 x4M. 2 with PCIe NVMe & SATA mode support, High Quality Audio Capacitors and Audio Noise Guard Design, RGB FUSION2.0 with Nontransferable RGB & RGB LED Strips Support, Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 5 Temperature Detectors and 2 Mongrel Addict Heads with Addict STOP, APP Center Including EasyTune and Cloud Station Utilities and also has CEC 2019 Ready, Save Power with a Simple Click. Then, GIGABYTEM. 2 result offers vastly briskly storehouse performance and also support for PCIe and SATA interfaces forM. 2 SSD bias. With the Smart Fan 5, Gamers can insure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows druggies to cloverleaf their addict heads to reflect different thermal detectors at different space on the motherboard. By equipping resistors with anAnti-Sulfur Design Gigabyte B450M DS3H WIFI gives Ultra Durable Motherboards a whole new meaning. This rearmost Gigabyte B450M DS3H WIFI offeres 03 times bond.
