Name: Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard
Brand: Gigabyte
Availability: OutOfStock

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard

Out Of Stock

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard

Stock: Out Of Stock
Product id: 640
Brand: Gigabyte
Model: Gigabyte A520M S2H Ultra Durable Motherboard

Based on 0 reviews. - Write a review

Model: Gigabyte A520M S2H Ultra Durable
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Smart Fan 5 Features
Ultra-Fast NVMe PCIe 3.0 x4 M.2
4+3 Phases Pure Digital VRM Solution

View more info

Specification

Motherboard Basic Info
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
Supported CPU	AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Chipset	AMD A520
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Max Shared Memory	16 GB
Form Factor	Micro ATX Form Factor; 24.4cm x 20.5cm
Expansion Slots
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Memory Specifications
Maximum Size	64 GB
Type	Dual channel memory architecture
Motherboard Memory Info
Slots	2 x DDR4 DIMM
Supported Memory	3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Connectivity
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Motherboard Graphics Info
Graphics	Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Connector & Ports (MB)

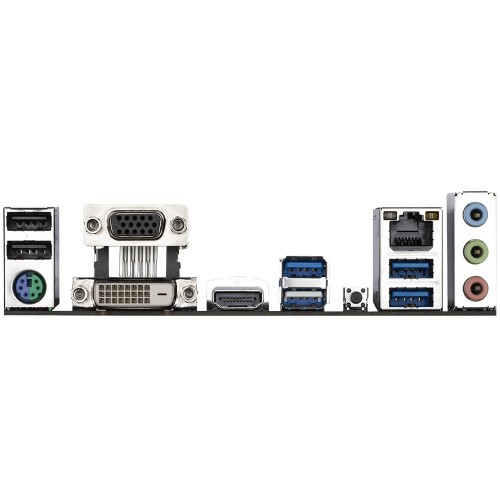

USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Support for Q-Flash Support for Xpress Install
Bundled Software	Support for Windows 10 64-bit
Warranty Information
Manufacturing Warranty	03 years

Description

Shop A520M S2H Ultra Durable Motherboard at Best Price in Bangladesh

Gigabyte A520M S2H Ultra Durable Micro-ATX Motherboard is ready to use the latest AMD Ryzen 3000 Series Processor. Ulta-Durable Armor the Special Facility for PCI-e Slot of Gigabyte A520M S2H Ultra Durable Micro-ATX Motherboard, refined audio quality, high-speed Ethernet, USB Type-C interfaces on select boards, and the latest standard WIFI design. AMD StoreMI technology Enable on this motherboard that easy-to-use utility integrates the speed of SSDs with the high capacity of HDDs into a single drive, increase the read/write speeds of the device to match that of SSDs, Support data performance for the unbelievable value, and transforms the everyday PC to a performance-driven system

গিগাবাইট ব্র্যান্ডের এই মাদারবোর্ডটি রাইজেনের Ryzen 5 3400G, Ryzen 5 3500X, Ryzen 5 3600, Ryzen 5 3700X,Ryzen 5 5600, Ryzen 9 5900X, Ryzen 9 5950X Processor গুলার জন্য উত্তম হবে তবে AM4 Socket এর সকল প্রসেসর সাপোর্ট করবে । ১২৮ জিবি পর্যন্ত র‍্যাম ব্যবহার করার সুযোগ থাকলেও ৩২ জিবি পর্যন্ত র‍্যাম ব্যবহার করা ভালো হবে, ২৬৬৬ বাস বা ২৪০০ বাসের র‍্যাম যথেষ্ট হলেও ৪৪০০ বাস, ৩৬০০ বাস, ৩২০০ বাসের র‍্যাম ব্যবহার করতে পারবেন। হার্ড ডিস্ক , এসএসডি বা এম ডট টু ব্যবহার করতে পারবেন । স্মার্ট ফ্যান ৫ সহ বেশ কিছু সুবিধা আছে এই মাদারবোর্ডে ।

Special Features of Gigabyte A520M S2H Ultra Durable Micro-ATX That must be Considered

Gigabyte A520M S2H Ultra Durable Micro-ATX Motherboard supports RGB LED Strips in 7-Colors with High-Quality Audio Capacitors and Audio Noise Guard Design and 2 Hybrid Fan Headers and Smart Fan 5 features 5 Temperature Sensors, APP Center Including EasyTune, RGB Supports Addressable LED & RGB LED Strips and Cloud Station Utilities which make your performance faster.

Review

What is the price of Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard in Bangladesh?

The Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard is Out Of Stock now. You can buy the Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: Gigabyte A520M S2H Ultra Durable Motherboard
