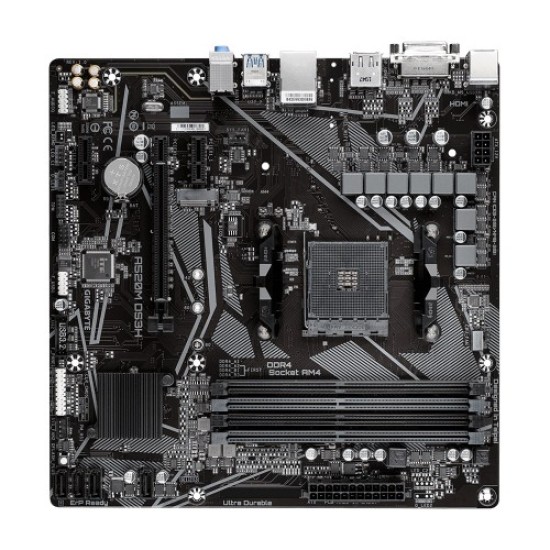

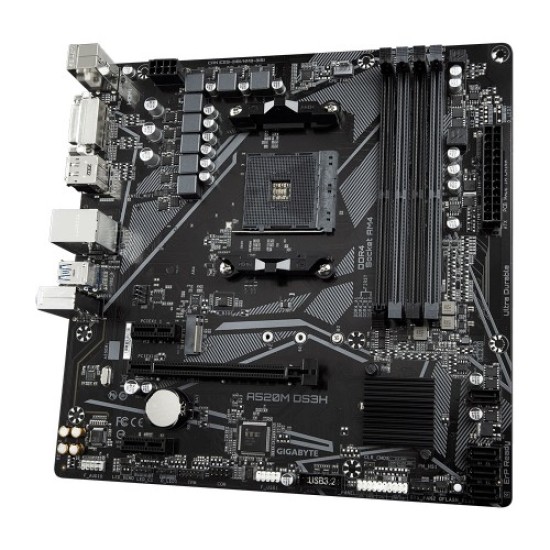

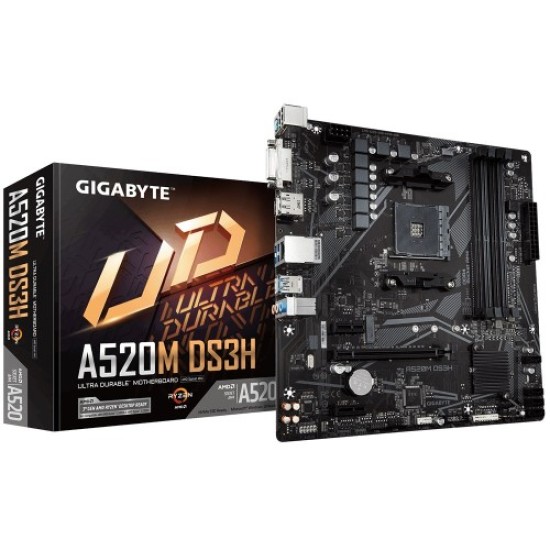

Gigabyte A520M DS3H AMD AM4 Motherboard

Gigabyte A520M DS3H AMD AM4 Motherboard
Gigabyte A520M DS3H AMD AM4 Motherboard
Gigabyte A520M DS3H AMD AM4 Motherboard
Gigabyte A520M DS3H AMD AM4 Motherboard
MEGA OFFER save 1100 ৳
Gigabyte A520M DS3H AMD AM4 Motherboard
Gigabyte A520M DS3H AMD AM4 Motherboard
Gigabyte A520M DS3H AMD AM4 Motherboard
Gigabyte A520M DS3H AMD AM4 Motherboard
Gigabyte A520M DS3H AMD AM4 Motherboard
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: A520M DS3H
  • Warranty: 3 Years
Featured Description:
  • Model: Gigabyte A520M DS3H
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Supports 3rd Gen AMD Ryzen Processors
  • 5+3 Phases Pure Digital VRM Solution
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
    • Based on 0 reviews. - Write a review
    Add to Cart
    Buy Now Ask Question
    WishList Compare
    👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

    Specification

    Motherboard Basic Info
    PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
    Supported CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
    Chipset AMD A520
    BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Max Shared Memory 16 GB
    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
    Expansion Slots
    M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Memory Specifications
    Maximum Size 16 GB
    Type DDR4 DIMM
    Motherboard Memory Info
    Slots 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Supported Memory 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
    Connectivity
    Display Port 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz - Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Motherboard Graphics Info
    Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz Note: The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz Note: Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Note: Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB
    Connector & Ports (MB)
    USB (s) CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
    Audio - Realtek ALC887 codec - High Definition Audio - 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
    DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz Note: The DVI-D port does not support D-Sub connection by adapter.
    Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
    Others
    Special Features Support for APP Center: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
    Bundled Software Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility Support for Windows 10 64-bit
    Warranty Information
    Manufacturing Warranty 03 years warranty

    Description

    Shop A520M DS3H Motherboard at Best Price in Bangladesh: Gigabyte A520M DS3H RGB FUSION 2.0 Motherboard is ready to use the latest AMD Ryzen 3000 Series Processor. Ulta-Durable Armor the Special Facility for PCI-e Slot of A520M DS3H RGB FUSION 2.0  Motherboard, refined audio quality, high-speed Ethernet, USB Type-C interfaces on select boards, and the latest standard WIFI design. AMD StoreMI technology Enable on this motherboard that easy-to-use utility integrates the speed of SSDs with the high capacity of HDDs into a single drive, increase the read/write speeds of the device to match that of SSDs, Support data performance for the unbelievable value, and transforms the everyday PC to a performance-driven system

    Questions

    Have question about this product? Get specific details about this product from expert.

    No questions have been asked about this product.

    Reviews

    Write a review

    Note: HTML is not translated!
    Bad Good

    What is The Latest Gigabyte A520M DS3H AMD AM4 Motherboard Price in Bangladesh?

    The Gigabyte A520M DS3H Motherboard price 2026 in bangladesh is 10,300৳ in today's 19-02-2026 BD market. Buy original Gigabyte A520M DS3H AMD AM4 Motherboard at the lowest price from Sell Tech website or visit our shop. The Gigabyte A520M DS3H AMD AM4 Motherboard manufacturing by Gigabyte comes with 3 Years warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.
    Tags: Gigabyte A520M DS3H , A520 motherboard , AMD AM4 motherboard , Ryzen motherboard , DDR4 motherboard , micro ATX motherboard , budget AMD motherboard , PCIe 3.0 board , M.2 slot motherboard , HDMI motherboard.
