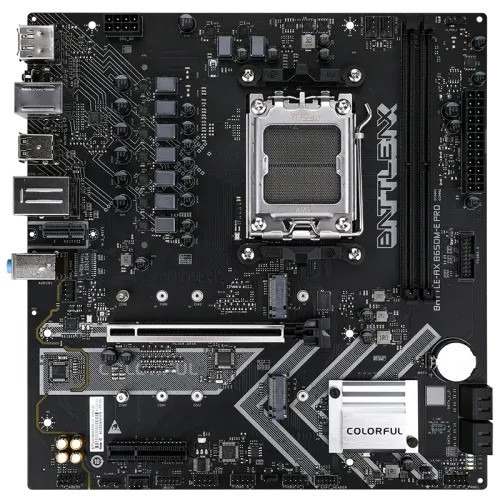

Colorful BATTLE-AX B650M-E PRO V14 AM5 mATX Motherboard

Colorful BATTLE-AX B650M-E PRO V14 AM5 mATX Motherboard
Save: 1220৳
Colorful BATTLE-AX B650M-E PRO V14 AM5 mATX Motherboard
  • Stock: In Stock
  • Price:  11,900৳
  • Regular Price:  13,120৳
  • Product id:  5782
  • Brand: Colorful
  • Model: BATTLE-AX B650M-E PRO V14
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: BATTLE-AX B650M-E PRO V14
  • Supported CPU: AMD Ryzen 7000/8000/9000 series for Socket AM5
  • Supported RAM: 2x DDR5 Up to 7600(OC) Max. 96GB
  • Graphics Output: 1x HDMI 2.0, 1x DisplayPort 1.2
  • Features: 2x M.2 slot, RTL8111K Gigabit Ethernet Card
View more info
Specification
Motherboard Basic Info
BIOS 256M UEFI, support multiple languages
Form Factor M-ATX 244mm x 235 mm
Motherboard Basic Information
Supported CPU Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
Chipset AMD B650
Expansion Slots
M.2 Socket 2 M.2 slots - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
Expansion Slots
PCI 1 PCIe 4.0 x16 slot 1 PCIe 4.0 x4 slot
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots 2 x DIMM
Supported Memory Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory Support Extreme Memory Profile (XMP) memory technology Support EXtended Profiles for Overclocking (EXPO) memory technology Supports dual channel memory technology
Maximum Memory up to 96 GB of memory (a single socket can support up to 48 GB of memory)
Connector & Ports (MB)
HDMI 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
LAN Port (s) 1×Gigabit network interface RTL8111K Gigabit Ethernet Card
Internal I/O Ports Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×PS/2 interface -1×Gigabit network interface -1×BIOS update button -3×Audio interfaces (audio input/output/microphone) On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×COM port pin -1×Speaker pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin
Supported Storage 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
Others
Special Features Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
Warranty Information
Warranty 03 years
Description

The Colorful BATTLE-AX B650M-E PRO V14 AM5 mATX Motherboard is a modern and efficient platform designed for the latest AMD Ryzen processors. Built on the advanced AM5 socket and B650 chipset, it supports next-generation DDR5 memory, delivering faster speeds, improved bandwidth, and enhanced overall system performance. Its Micro ATX form factor makes it an excellent choice for compact PC builds without compromising essential features.

This motherboard offers reliable performance for gaming, productivity, and everyday computing. With PCIe expansion support, users can install modern graphics cards and additional components with ease. It also includes M.2 slots for high-speed NVMe SSDs, ensuring quick boot times and fast data access, along with multiple SATA ports for flexible storage configurations.

Designed with durability in mind, the BATTLE-AX B650M-E PRO V14 features stable power delivery and efficient thermal management to maintain consistent performance under load. The user-friendly BIOS interface allows easy system setup and customization. Combining affordability, performance, and next-gen features, this motherboard is an ideal choice for building a reliable and future-ready AMD Ryzen system.
