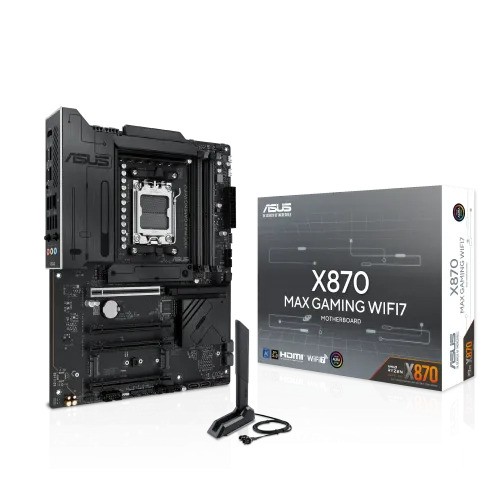

Asus X870 MAX GAMING WIFI7 AM5 ATX Motherboard

Asus X870 MAX GAMING WIFI7 AM5 ATX Motherboard
Save: 4200৳
Asus X870 MAX GAMING WIFI7 AM5 ATX Motherboard
  • Stock: In Stock
  • Price:  42,000৳
  • Regular Price:  46,200৳
  • Product id:  4246
  • Brand: Asus
  • Model: X870 MAX GAMING WIFI7
Payment Option
Add to Cart
  • Model: X870 MAX GAMING WIFI7
  • Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
  • Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
  • Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
  • Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
Specification
Motherboard Basic Info
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD X870 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOSc
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
M.2 Socket AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Expansion Slots
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 256GB
Motherboard Graphics Info
Graphics 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a. VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports (MB)
HDMI 1x HDMI 2.1
USB (s) Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. Specifications vary by CPU types.
Others
Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Warranty Information
Manufacturing Warranty 3 Years
Description

The Asus X870 MAX GAMING WIFI7 AM5 ATX Motherboard is a next-generation powerhouse engineered for high-performance gaming, creative workloads, and enthusiast-grade builds. Designed to support the latest AMD Ryzen™ 9000 series processors on the AM5 socket, this advanced motherboard delivers a future-ready platform for gamers and PC enthusiasts seeking top-tier performance and connectivity.

Built on the robust X870 chipset, the X870 MAX GAMING ensures unmatched compatibility with DDR5 memory, PCIe 5.0 GPUs and NVMe storage, and cutting-edge connectivity options, including WiFi 7 and 2.5G Ethernet. Whether you're building a high-end workstation or a gaming rig, this board provides rock-solid stability and exceptional performance.

With enhanced power delivery, premium capacitors, and multi-layer PCB design, this motherboard is optimized for extreme overclocking and long-lasting durability. The extended VRM heatsinks, thermal pads, and fan headers ensure efficient heat dissipation under load, giving users optimal thermal performance during intense gaming or rendering sessions.

For gamers, the Asus X870 MAX GAMING delivers immersive audio through high-fidelity components, paired with AI Noise Cancellation for crystal-clear communication. RGB lovers will enjoy support for Aura Sync, allowing full control over system lighting and synchronization with other compatible components.

Key features include:

- AMD AM5 socket, supporting Ryzen 9000/8000 processors

- DDR5 support, up to 192GB with EXPO and XMP profiles

- PCIe 5.0 x16 slot for next-gen GPUs

- Dual M.2 PCIe Gen5 slots with heatsinks

- WiFi 7 & Bluetooth 5.4 for ultra-fast wireless

- 2.5Gb Ethernet and USB 4.0 Type-C

- BIOS Flashback & Q-LED for easier troubleshooting

For PC builders in Bangladesh, the Asus X870 MAX GAMING WIFI7 offers a perfect balance of power, design, and cutting-edge features at a competitive price point. Its durable ATX form factor makes it compatible with a wide range of mid to full tower cases, while the layout and tool-free installation make it beginner-friendly.

Whether you're a gamer, streamer, or creative professional, this motherboard sets the stage for your next-gen AM5 build. It’s ideal for those looking for long-term reliability, enhanced thermal control, and maximum bandwidth for peripherals and storage.

 In conclusion, the Asus X870 MAX GAMING WIFI7 ATX Motherboard is one of the best choices in 2025 for users who demand peak gaming performance, modern features, and seamless connectivity. Backed by ASUS’s reliability and years of innovation, this board is a future-proof investment for building high-end PCs in Bangladesh.

Looking for the best Asus X870 Motherboard price in BD? Visit authorized resellers and get the latest offer, warranty, and expert support.
