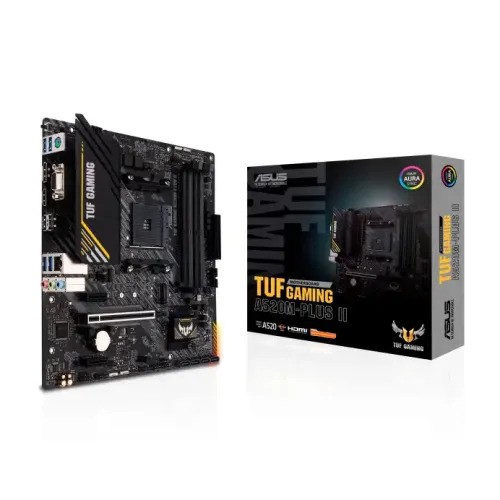

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Save: 1940৳
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
  • Stock: In Stock
  • Price:  11,900৳
  • Regular Price:  13,840৳
  • Product id:  3719
  • Brand: Asus
  • Model: TUF GAMING A520M-PLUS II
Payment Option
Add to Cart
  • Model: TUF GAMING A520M-PLUS II
  • Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR4
  • Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
  • Features: Onboard RGB headers
Specification
Motherboard Basic Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX 24.4cm x 24.4cm
Motherboard Basic Information
Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset A520
Expansion Slots
PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots
Memory Specifications
Type DDR4
Motherboard Memory Info
Supported Memory 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture
Maximum Memory 128GB
Motherboard Graphics Info
Graphics 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub
Connector & Ports (MB)
HDMI 1 x HDMI port
USB (s) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Internal I/O Ports Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
D-Sub (s) 1 x D-Sub
Supported Storage AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10
Others
Special Features ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Warranty Information
Manufacturing Warranty 3 years
Description

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

The Asus TUF GAMING A520M-PLUS II Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, the Asus TUF GAMING A520M-PLUS II Motherboard is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Asus TUF GAMING A520M-PLUS II Motherboard provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface and reduces network lag. The Asus TUF GAMING A520M-PLUS II Motherboard comes with 3 years of warranty.

Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard in Bangladesh?

The latest price of Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard in Bangladesh is 11,900৳ . You can buy the Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard at best price from our website or visit any of our showrooms.
