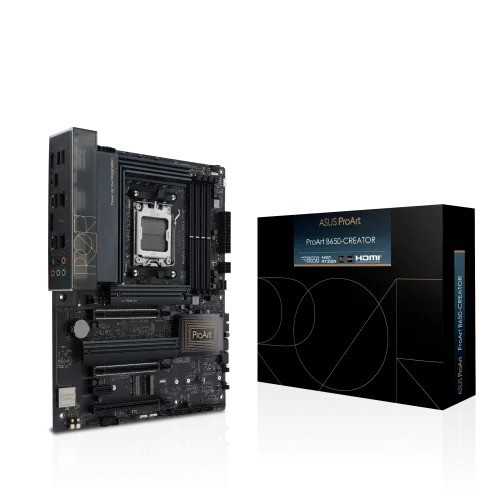

ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard

ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard
Save: 2860৳
ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard
  • Stock: In Stock
  • Price:  40,000৳
  • Regular Price:  42,860৳
  • Product id:  4244
  • Brand: Asus
  • Model: ProArt B650-CREATOR
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: ProArt B650-CREATOR
  • Supported CPU: Ryzen 7000/ 8000 Series Processors for Socket AM5
  • Supported Memory: 4 x DIMM slots, Max. 192GB, DDR5 6400+(OC)
  • Graphics Output: 1 x HDMI port, 1 x USB Type-C
  • Features: 1 x Realtek 2.5Gb Ethernet
View more info
Specification
Motherboard Basic Info
Supported CPU AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. AMD Ryzen 7000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Expansion Slots
M.2 Socket 3 x M.2 slots
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots 4 x DIMM
Supported Memory 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory 192GB
Motherboard Graphics Info
Graphics 1 x HDMITM port** 1 x USB Type-C port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. 1 x HDMI port** 1 x USB Type-C port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.
Connector & Ports (MB)
HDMI 1 x HDMI
USB (s) Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Ports Internal I/O Connectors I/O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.
Others
Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
Warranty Information
Manufacturing Warranty 3 Years
Description

The ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard is a premium motherboard designed for content creators, designers, and professionals seeking top-tier performance, stability, and expandability. Built on the advanced AMD B650 chipset, this motherboard supports the latest AMD Ryzen 7000 Series processors with the AM5 socket, unlocking powerful multitasking and creative potential.

One of the key highlights of the ASUS ProArt B650-CREATOR is its DDR5 memory support, delivering higher bandwidth and efficiency compared to DDR4. It supports up to 192GB of DDR5 RAM at high frequencies, making it ideal for demanding workloads such as video editing, 3D rendering, software development, and audio production.

This ATX motherboard is designed with creators in mind, offering dual M.2 PCIe 5.0 slots, PCIe 5.0 x16 slot, 2.5Gb Ethernet, and WiFi 6E for ultra-fast, low-latency networking. It also includes comprehensive USB connectivity, including USB 3.2 Gen 2x2 Type-C, ensuring seamless data transfer and device compatibility. Additionally, Thunderbolt™ 4 support via add-in card makes it ready for high-speed workflows and device expansion.

ASUS ProArt B650-CREATOR features the signature ProArt Design, with a sleek black-and-gold aesthetic and ProArt Creator Hub integration for monitoring and customizing system performance. It comes with a robust VRM design (12+2 teamed power stages) and high-quality components to ensure stability even under heavy loads, plus efficient thermal solutions like enlarged VRM heatsinks and M.2 heatsinks.

The motherboard includes AI-based features like AI Cooling II, enabling intelligent fan control, and Q-Latch for tool-free M.2 installation, making it user-friendly even for beginners or DIY builders. ASUS also ensures long-term reliability with Q-LED indicators, SafeSlot, stainless steel back I/O, and comprehensive protection.

Whether you're building a professional workstation for Adobe Premiere Pro, DaVinci Resolve, AutoCAD, or Blender, the ASUS ProArt B650-CREATOR is the ideal foundation to power your creative workflows efficiently and reliably.

Key Features:

- Supports AMD Ryzen 7000 Series (AM5)

- DDR5 Memory Support (Up to 192GB)

- PCIe 5.0 x16 & Dual M.2 Slots

- WiFi 6E & Intel 2.5Gb LAN

- USB 3.2 Gen 2x2 Type-C + Thunderbolt support

- ProArt Creator Hub software

- Robust VRM & Enhanced Cooling

- Sleek ProArt aesthetics for creators

Conclusion:

The ASUS ProArt B650-CREATOR ATX Motherboard stands out as a high-performance platform tailored for professional content creators in 2025. It combines cutting-edge connectivity, reliable power delivery, and intelligent design, making it the go-to choice for building a creative powerhouse PC. Available now in Bangladesh and worldwide.
