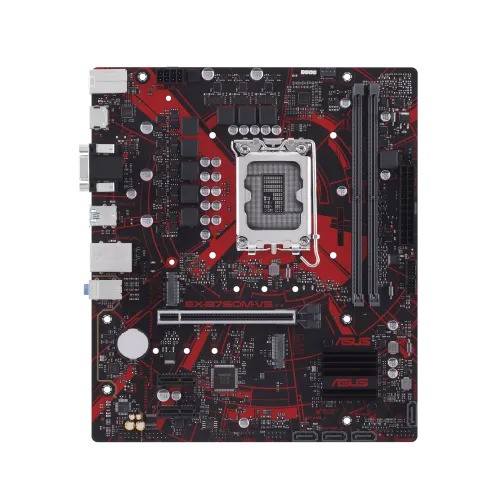

ASUS EX-B760M-V5 D4 mATX Motherboard

ASUS EX-B760M-V5 D4 mATX Motherboard
Save: 1690৳
ASUS EX-B760M-V5 D4 mATX Motherboard
  • Stock: In Stock
  • Price:  16,000৳
  • Regular Price:  17,690৳
  • Product id:  3750
  • Brand: Asus
  • Model: EX-B760M-V5 D4
Payment Option
Add to Cart
  • Model: EX-B760M-V5 D4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB 5333(O.C.)
  • Graphics Output: 1x HDMI port, 1x DisplayPort
  • Features: 1x VGA port, 1 x HDMI port
Specification
Motherboard Basic Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Motherboard Basic Information
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
Expansion Slots
PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Expansion Slots
M.2 Socket 2 x M.2 slots
Memory Specifications
Type DDR4
Motherboard Memory Info
Slots 2x DIMM
Supported Memory 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Motherboard Graphics Info
Graphics Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports (MB)
HDMI 1 x HDMI port
USB (s) Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet port
Internal I/O Ports Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Warranty Information
Manufacturing Warranty 3 years warranty
Description

ASUS EX-B760M-V5 D4 mATX Motherboard

The ASUS EX-B760M-V5 D4 is an Intel B760 LGA 1700 mATX motherboard designed to deliver robust performance and durability for iCafes, gaming systems, and quality-driven businesses. Featuring PCIe 4.0, 8 power stages, and Realtek 2.5 Gb Ethernet, this motherboard offers cutting-edge technology and reliability. It is the ideal choice for non-stop action, making it perfect for iCafe setups, configure-to-order gaming systems, and professional environments focused on quality. The ASUS EX-B760M-V5 D4, with its luminous anti-moisture coating, protects against moisture damage, extending the motherboard's lifespan. The motherboard also includes LANGuard for enhanced surge protection and signal delivery, SafeSlot Core+ for reinforced PCIe slot protection, USBGuard to prevent overcurrent and short-circuit damage to USB devices, and a stainless-steel back I/O that is corrosion-resistant for longer-lasting performance. Its 5X Protection III provides comprehensive protection features ensuring overall system stability and reliability. The ASUS EX-B760M-V5 D4 supports DDR4 5333 (OC) for high-speed memory performance and is equipped with two M.2 slots for fast storage solutions. Its PCIe 4.0 compatibility supports the latest graphics cards and peripherals, while the Realtek 2.5 Gb Ethernet ensures quick and reliable networking. The motherboard is ASUS Beyond VR ready, providing immersive virtual reality experiences, and offers epic audio for superior sound quality in games and multimedia applications. The ASUS EX-B760M-V5 D4 is ASUS iCafé LAB-certified, ensuring reliable performance in iCafe environments and compatibility tested with diskless-system use for efficient network booting. Extensive testing with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and more ensures broad compatibility and top-tier performance.

Buy ASUS EX-B760M-V5 D4 mATX Motherboard from Sell Tech

In Bangladesh, you can get original ASUS EX-B760M-V5 D4 mATX Motherboard From Sell Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Sell Tech Shop to get yours at lowest price. The ASUS EX-B760M-V5 D4 mATX Motherboard comes with 3 years warranty.
