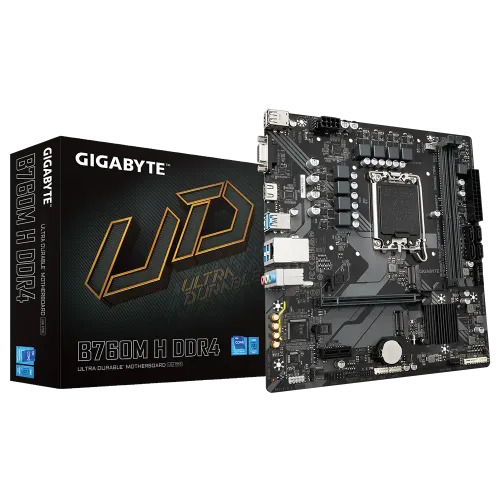

GIGABYTE B760M H DDR4 mATX Motherboard

GIGABYTE B760M H DDR4 mATX Motherboard
Save: 970৳
GIGABYTE B760M H DDR4 mATX Motherboard
  • Stock: In Stock
  • Price:  14,200৳
  • Regular Price:  15,170৳
  • Product id:  3265
  • Brand: Gigabyte
  • Model: B760M H DDR4
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
  • Graphics Output: 1x HDMI, 1 x D-Sub
  • Features: Realtek GbE LAN chip
View more info
Specification
Motherboard Basic Info
Supported CPU LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Expansion Slots
PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Motherboard Memory Info
Slots 2
Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 64GB (32 GB single DIMM capacity) of system memory
Motherboard Memory Info
Type DDR4
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Connector & Ports (MB)
HDMI 1x HDMI
USB (s) Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
D-Sub (s) 1x D-Sub
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
Others
Special Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty 03 Years
Description

GIGABYTE B760M H DDR4 mATX Motherboard

The GIGABYTE B760M H DDR4 Micro ATX Motherboard is designed for powerful and efficient performance with Intel’s latest 12th and 13th Gen processors. Supporting DDR4 memory, this motherboard offers excellent compatibility and speed for gaming, content creation, and everyday computing. Featuring multiple PCIe slots, M.2 NVMe SSD support, and enhanced connectivity options including USB 3.2 Gen 1, the B760M H ensures smooth multitasking and fast data transfer. Its compact Micro ATX form factor fits perfectly in mid-sized cases, making it ideal for users who want a balance of performance and size. With robust build quality, smart thermal design, and user-friendly BIOS, this motherboard is a perfect choice for building a reliable and upgradeable PC system.


Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of GIGABYTE B760M H DDR4 mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M H DDR4 mATX Motherboard in Bangladesh is 14,200৳ . You can buy the GIGABYTE B760M H DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
