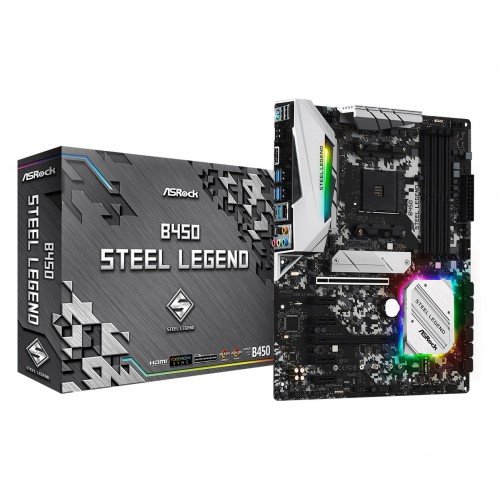

Name: Asrock B450 Steel Legend ATX AMD Motherboard
Brand: ASRock
Availability: OutOfStock

Asrock B450 Steel Legend ATX AMD Motherboard

Out Of Stock

Asrock B450 Steel Legend ATX AMD Motherboard

Stock: Out Of Stock
Product id: 2242
Brand: ASRock
Model: B450 Steel Legend Motherboard

Based on 0 reviews. - Write a review

Model: Asrock B450 Steel Legend
Support AMD AM4 Socket CPU
Supports DDR4 3533+ (OC)
2 PCIe 3.0 x16, 4 PCIe 2.0 x1
AMD Quad CrossFireX

View more info

Specification

Basic Information
Brand	Asrock
Model	B450 Steel Legend ATX
Motherboard Basic Info
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment
Motherboard Basic Information
Supported CPU	AMD AM4 Socket - Digi Power design - 6 Power Phase design
Chipset	AMD Promontory B450
Expansion Slots
M.2 Socket	1 x Ultra M.2 Socket
Expansion Slots
PCI	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE1 slot will run at x4 mode.) AMD Athlon series CPUs - 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode) - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX
Memory Specifications
Type	Dual Channel DDR4 Memory Technology
Graphics Specifications
Max Shared Memory	2GB
Motherboard Memory Info
Supported Memory	AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Maximum Memory	64GB
Motherboard Graphics Info
Graphics	-Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Connector & Ports (MB)
HDMI	1 x HDMI Port
USB (s)	2 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Internal I/O Ports	1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x AMD Fan LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Warranty Information
Manufacturing Warranty	03 years

Description

Do You Want To Know Asrock B450 Steel Legend ATX AMD Motherboard Latest Price in Bangladesh and it's Special Features ? Don't Worry We Inform You About The Asrock B450 Steel Legend ATX AMD Motherboard all Features and Price in BD.

Supported CPU :

Asrock B450 Steel Legend ATX AMD Motherboard Supports AMD Ryzen AM4 Socket Processor ; Such As Ryzen 5 5600G, Ryzen 5 5600, Ryzen 5 5600X, Ryzen 7 5700G .

Ultra M.2 Slot:

Asrock B450 Steel Legend ATX AMD Motherboard Comes with 2 PCIe Slot. You Can Use PCIe 3.0 & 4.0 . If you use Athlon 2xxGE series APU, PCIE1 slot will run at x4 mode

Memory Slot:

Asrock B450 Steel Legend ATX AMD Motherboard Comes with 4 Ram Slot Where You Can Use upto 4 Stick DDR-4 Ram. Maximum Memory 64GB You Can Use.

Graphics:

Asrock B450 Steel Legend ATX AMD Motherboard Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

Purchase with Confidence as We Offer 3-Year Warranty

Asrock B450 Steel Legend ATX AMD Motherboard Series products come with 3 years warranty. We’re always ready to provide complete technical support via telephone, email or official website.

Review

What is the price of Asrock B450 Steel Legend ATX AMD Motherboard in Bangladesh?

The Asrock B450 Steel Legend ATX AMD Motherboard is Out Of Stock now. You can buy the Asrock B450 Steel Legend ATX AMD Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: Asrock B450 Steel Legend ATX Motherboard , Asrock B450 Steel Legend ATX Motherboard Review
