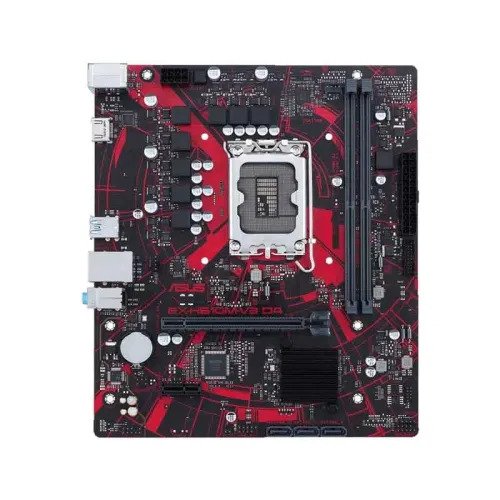

Asus EX-H610M-V3 D4 mATX Motherboard

Asus EX-H610M-V3 D4 mATX Motherboard
Out Of Stock
Asus EX-H610M-V3 D4 mATX Motherboard
  • Stock: Out Of Stock
  • Product id:  3375
  • Brand: Asus
  • Model: EX-H610M-V3 D4
  • Model: EX-H610M-V3 D4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported Memory: 2 x DIMM, Max. 64GB, DDR4
  • Graphics Output: 1 x HDMI
  • Realtek 1Gb Ethernet
Specification
Motherboard Basic Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Motherboard Basic Information
Supported CPU Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
Expansion Slots
PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
External Features
I/O Port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Memory Specifications
Type DDR4
Motherboard Memory Info
Slots 2 x DIMM
Supported Memory 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Motherboard Graphics Info
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports (MB)
HDMI 1 x HDMI port
USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet port
Audio 3 x Audio jacks
Supported Storage Total supports 3 x SATA 6Gb/s ports Intel H610 Chipset 3 x SATA 6Gb/s ports
Others
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Anti-moisture coating - USBGuard
Warranty Information
Manufacturing Warranty 3 years warranty
Description

The ASUS EX-H610M-V3 D4 mATX Motherboard is a reliable and feature-rich solution for users looking to build a stable and high-performance Intel-based PC. Designed to support 12th and 13th Gen Intel Core processors, this motherboard delivers consistent computing power for gaming, productivity, and everyday computing needs.


Equipped with DDR4 memory support, the EX-H610M-V3 ensures smooth multitasking and fast application performance. Its micro-ATX form factor provides versatile compatibility with a wide range of PC cases while offering essential expansion slots, including PCIe and M.2 slots for NVMe SSDs and high-speed graphics cards.


The motherboard features robust power delivery and efficient thermal design, ensuring stable performance even under demanding workloads. With a variety of connectivity options, including USB 3.2, HDMI, and Gigabit LAN, it supports both high-speed data transfer and modern peripherals.


Ideal for gamers, professionals, and home PC builders, the ASUS EX-H610M-V3 D4 mATX Motherboard combines Intel CPU compatibility, DDR4 memory support, and efficient design to deliver a reliable and upgrade-ready platform for your desktop build.
