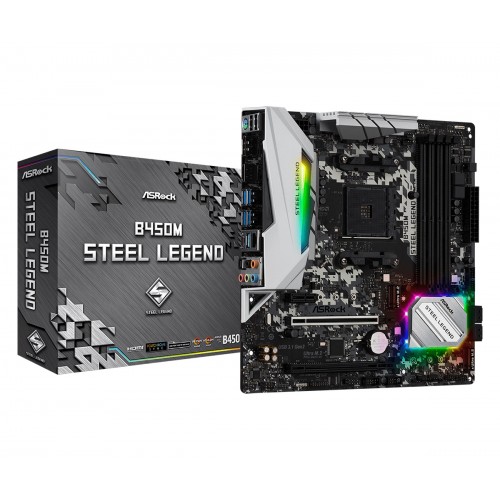

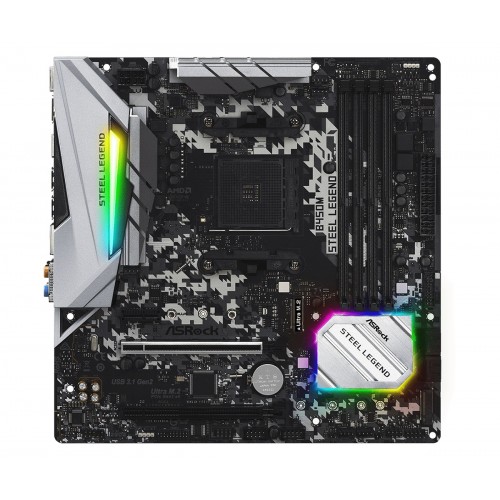

Name: Asrock B450M Steel Legend AMD Motherboard
Brand: ASRock
Availability: OutOfStock

Asrock B450M Steel Legend AMD Motherboard

Out Of Stock

Asrock B450M Steel Legend AMD Motherboard

Stock: Out Of Stock
Product id: 463
Brand: ASRock
Model: Asrock B450M Steel Legend

Based on 0 reviews. - Write a review

- Model: Asrock B450M Steel Legend
- Supports AM4 Socket Ryzen 2000, 3000 & 5000 Series Processors
- Supports DDR4 3533+ (OC)
- AMD Quad CrossFireX
- Graphics Output: DisplayPort, HDMI

View more info

Specification

Motherboard Basic Info
PCI	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) - 1 x PCI Express 2.0 x1 Slot - Supports AMD Quad CrossFireX™ and CrossFireX™
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Motherboard Basic Information
Supported CPU	AMD AM4 Socket - Digi Power design - 6 Power Phase design
Chipset	AMD Promontory B450
Expansion Slots
M.2 Socket	1 x Ultra M.2 Socket (M2_1)
Graphics Specifications
Max Shared Memory	Shared memory default 2GB. Max Shared memory supports up to 16GB
Motherboard Memory Info
Slots	4 x DDR4 DIMM Slots
Supported Memory	AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Maximum Memory	64GB
Motherboard Memory Info
Type	Dual-Channel DDR4 Memory Technology
Connectivity
Display Port	1 x DisplayPort 1.2
Motherboard Graphics Info
Graphics	-Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

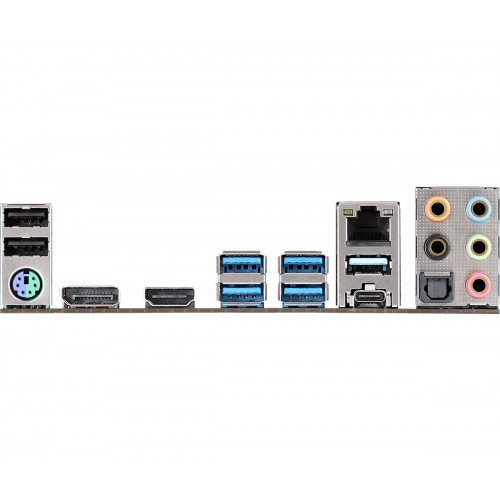

Connector & Ports (MB)
HDMI	1 x HDMI Port
USB (s)	- 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s)	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio	HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Ports	- 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header - 1 x AMD Fan LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Warranty Information
Manufacturing Warranty	03 years

Description

Asrock B450M Steel Legend AMD ATX Motherboard

Asrock B450M Steel Legend AMD AM4 Socket.Supports DDR4 3533+ (OC)1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1. AMD Quad CrossFireX™. Graphics Output: DisplayPort, HDMI. 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps. 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3).2 USB 3.1 Gen2 (Rear Type-A+C). 6 USB 3.1 Gen1 (2 Front, 4 Rear). Realtek Gigabit LAN

Review

What is the price of Asrock B450M Steel Legend AMD Motherboard in Bangladesh?

The Asrock B450M Steel Legend AMD Motherboard is Out Of Stock now. You can buy the Asrock B450M Steel Legend AMD Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: Asrock B450M Steel Legend
