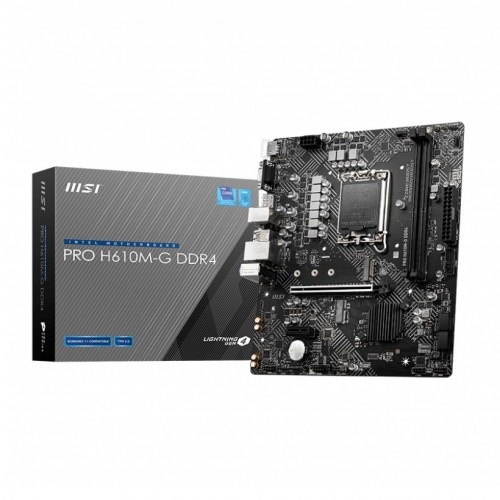

MSI PRO H610M-G DDR4 12th Gen Mirco-ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO H610M-G DDR4
Specification
| Motherboard Basic Info | |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Motherboard Basic Information | |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel H610 Chipset |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Memory Specifications | |
| Type | DDR4 |
| Motherboard Memory Info | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | Support up to 64GB |
| Motherboard Graphics Info | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Connector & Ports (MB) | |
| HDMI | 1x HDMI 2.1 |
| USB (s) | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
MSI PRO H610M-G DDR4 12th Gen Mirco-ATX Motherboard
The MSI PRO H610M-G DDR4 features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual ChannelNon-ECC Unbuffered DDR4, 2 DIMMs. It has a 6 1 1 Mongrel Digital VRM Design. Solid capacitors to ameliorate flash response and minimize oscillation. MSI PRO H610M-G DDR4 motherboard comes with MSI lightning Gen 4 PCI-E is the rearmost and the fastest PCI-E data transfer result with 64GB/ s of transfer bandwidth that has doubled compared to its former generation. PCIe4.0 maintains both backward and forward comity with aged and newer specifications. Optimized by sword armor design, your motherboards can support the weight of heavy plates cards. It's equipped with Realtek 8118 LAN is a high- performance and friendly network chip for gaming players with automatic bandwidth allocation to insure the loftiest network precedence of the game or operation. The MSI PRO H610M-G DDR4 features solid plated ATX 12V 8pin power connectors to offer a stable power force during CPU overfilling. It has Smart Fan 6 Features Multiple Temperature Detectors, Mongrel Addict Heads with Addict STOP. It's designed with HDMI/ D-Sub Anchorages for Multiple Displays. The MSI PRO H610M-G DDR4 motherboard comes with 3 times of bond.
