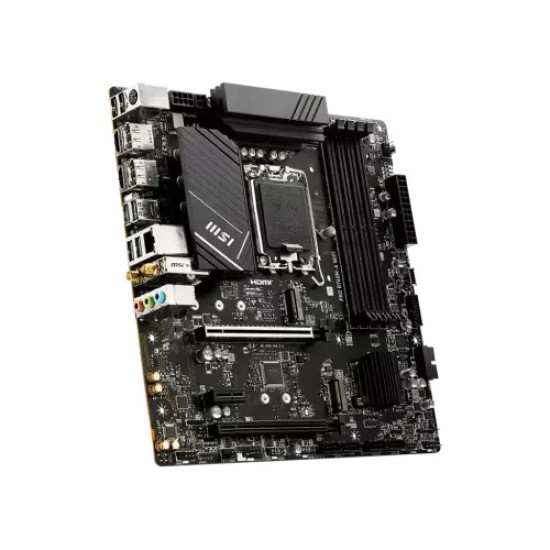

MSI PRO B760M-A WIFI mATX Motherboard

MSI PRO B760M-A WIFI mATX Motherboard
Save: 760৳
MSI PRO B760M-A WIFI mATX Motherboard
  • Stock: In Stock
  • Price:  19,600৳
  • Regular Price:  20,360৳
  • Product id:  3257
  • Brand: MSI
  • Model: PRO B760M-A WIF
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR5, Max 192GB 6800+MHz (OC)
    • Graphics Output: 2x HDMI, 2x DisplayPort
    • Features: 2x M.2 slot, Intel Wi-Fi 6E
View more info
Specification
Motherboard Basic Info
Form Factor mATX 243.84mmx243.84mm
Motherboard Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Expansion Slots
PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Motherboard Memory Info
Slots 4
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory 192GB
Motherboard Memory Info
Type DDR5
Connectivity
Display Port 2x DisplayPort
HDMI 2x HDMI
Motherboard Graphics Info
Graphics 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Connector & Ports (MB)
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Audio 3x Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 Years
