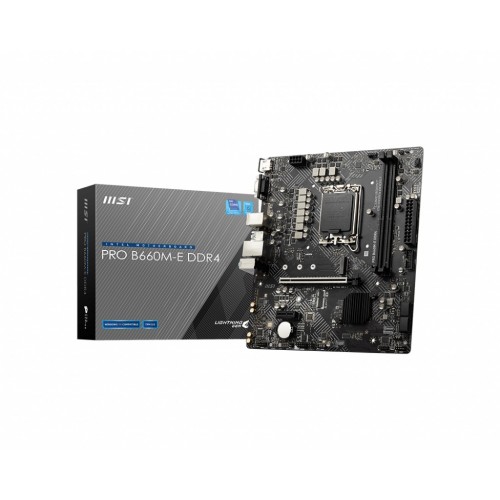

MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard

MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
Out Of Stock
MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
  • Stock: Out Of Stock
  • Brand: MSI
  • Model: PRO B660M-E DDR4
Featured Description:
  • Model: PRO B660M-E DDR4
  • Supported Processors: 12th Gen Intel Core, Pentium Gold & Celeron processors
  • Supported Memory: DDR4, up to 4600+(OC) MHz
  • PCIe 4.0, premium layout, digital power design
  • Supported socket: LGA 1700
  • 👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

    Specification

    Motherboard Basic Info
    Form Factor M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
    Motherboard Basic Information
    Chipset Intel B660 Chipset
    Expansion Slots
    PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From B660 chipset) Supports PCIe 3.0 x1
    Expansion Slots
    M.2 Socket 1x M.2 slot (Key M, from B660 chipset) 1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core™ processors
    Memory Specifications
    Type DDR4
    Motherboard Memory Info
    Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
    Maximum Memory support up to 64GB
    Motherboard Graphics Info
    Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    Connector & Ports (MB)
    HDMI HDMI (BACK PANEL PORTS)
    USB (s) Intel B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
    Internal I/O Ports 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
    Warranty Information
    Manufacturing Warranty 3 years warranty

    Description

    MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard

     MSI PRO B660M-E DDR4 motherboard Supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4600 (OC) MHz. MSI LAN Manager automatically classifies and prioritizes the quiescence-sensitive operations, It'll giving you the stylish online experience with low quiescence. With the decoration layout and digital power design helps to support more cores and give better performance, In this motherboard, Memory Boost featured with Advanced technology to deliver pure data signals for the stylish performance, stability and comity. It's also has Lightning Fast Experience PCIe4.0. The MSI lightning Gen 4 PCI-E is the rearmost and the fastest PCI-E data transfer result, which comes with 64GB/ s of transfer bandwidth that has doubled compared to its former generation. PCIe4.0 maintains both backward and forward comity with aged and newer specifications. Optimized by sword armor design, it also helps the motherboards to support the weight of heavy plates cards. the motherboard has FROZR AI COOLING, it Detecting CPU & GPU temperatures and automatically conforming addict duty of system suckers to a proper value by espousing MSI AI ENGINE. This rearmost MSI PRO B660M-E DDR4 motherboard comes with 03 times bond.


    Questions

    Have question about this product? Get specific details about this product from expert.

    No questions have been asked about this product.

    Reviews

    Write a review

    Note: HTML is not translated!
    Bad Good

    What is The Latest MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard Price in Bangladesh?

    The MSI PRO B660M-E DDR4 Motherboard price 2026 in bangladesh is in today's 22-02-2026 BD market. Buy original MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard at the lowest price from Sell Tech website or visit our shop. The MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard manufacturing by MSI comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.
