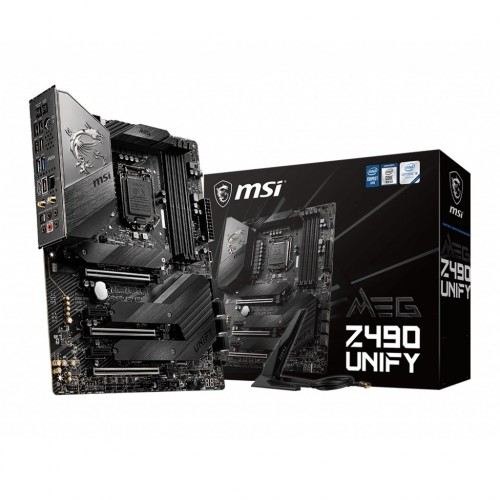

MSI MEG Z490 Unify Wi-Fi 11th Gen ATX Gaming Motherboard
- Stock: Out Of Stock
- Brand: MSI
- Model: MSI MEG Z490 Unify
Specification
| Motherboard Basic Information | |
| Supported CPU | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket |
| Chipset | Intel Z490 Chipset |
| Expansion Slots | |
| PCI | 3x PCIe 3.0x 16 slots (2 from CPU, 1 from PCH, support 16/ 0/ 4, 8/ 8/ 4) 2x PCIe x1 slots (from PCH) PCIE_5 shares lanes with M2_3, please refer to manual for details |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices2 M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices3 Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| Memory Specifications | |
| Type | DDR4 |
| Motherboard Memory Info | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4500+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Motherboard Graphics Info | |
| Graphics | Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Connector & Ports (MB) | |
| USB (s) | Intel Z490 Chipset 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia 3241 chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x slow mode jumper 1x power button 1x reset button 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x RTD3 connector 1x TBT connector |
| Supported Storage | Intel® Z490 Chipset 6x SATA 6Gb/s ports1 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
MSI MEG Z490 Unify Wi-Fi 11th Gen ATX Gaming Motherboard
The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our being magazine with new innovative technology; this results in significant advancements in functional and gaming effectiveness. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for suckers who want it all. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to insure your system runs stable no matter what. Our memory mates include brands like Corsair, Crucial, Kingston,G.Skill and numerous further to optimize memory modules, configurations and indeed ameliorate overclocking. MSI OC LAB doesn't simply work hard on extreme overclocking. Compare to Z390 motherboard memory XMP profile, MSI does have great enhancement on performance and effectiveness for Z490. Easy to enable XMP profile with bus power settings to get the stylish memory speed and stability. MSI MEG series motherboards feature exclusive Memory Force function which shows the current state of DDR4 memory. This patent-pending point simplifies the complicated training inflow to an easy visual that helps you determine the direction of overclocking without the spare reboot and testing process. The XMP (Extreme Memory Biographies) in MSI Memoirs are tested and certified by MSI OC LAB. It's easy to enable with bus power settings to get the stylish memory speed and stability.2.5 Gbps LAN provides inconceivable data transfer speed briskly than general Gigabit LAN. This is a decoration result for demanding druggies. The WIFI 6 adopts the rearmost OFDMA and two- way MU-MIMO technologies and could give up to 4X network capacity and effectiveness in the high signal viscosity terrain. Comparing to the WIFI 5, which can only shoot the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several bias and allow signals from the different bias whisked together. This new technology provides all the bias in the same network terrain with same and harmonious business bandwidth in an effective way. MSI LAN Manager automatically classifies and prioritizes the quiescence-sensitive operations for online games, giving you the stylish online gaming experience with low quiescence.
