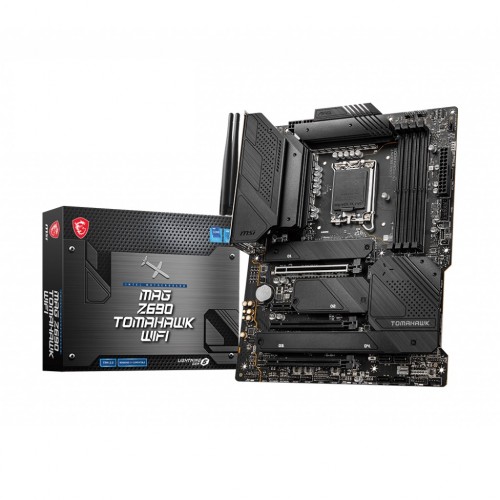

MSI MAG Z690 TOMAHAWK WIFI 12th Gen ATX Motherboard

MSI MAG Z690 TOMAHAWK WIFI 12th Gen ATX Motherboard
Discountinued
MSI MAG Z690 TOMAHAWK WIFI 12th Gen ATX Motherboard
  • Stock: Discountinued
  • Brand: MSI
  • Model: MAG Z690 TOMAHAWK WIFI
Featured Description:
  • Model: MAG Z690 TOMAHAWK WIFI
  • Supports 12th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400(OC) MHz
  • Extended Heatsink Design and M.2 Shield Frozr
  • 2.5G LAN and Intel Wi-Fi Solution
    • Based on 0 reviews. - Write a review
    Add to Cart
    Buy Now Ask Question
    WishList Compare
    👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

    Specification

    Motherboard Basic Information
    Supported CPU Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700
    Chipset Intel Z690 Chipset
    Expansion Slots
    PCI 3x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support up to PCIe 3.0 x4 PCI_E4 (From Z690 chipset) Support up to PCIe 3.0 x1 1x PCIe 3.0 x1 slot (From Z690 chipset)
    Expansion Slots
    M.2 Socket 4x M.2 slots (Key M)
    Memory Specifications
    Type DDR5
    Motherboard Memory Info
    Supported Memory Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
    Motherboard Graphics Info
    Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology
    Connector & Ports (MB)
    USB (s) Intel Z690 Chipset: 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G: 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
    Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
    Supported Storage 6x SATA 6Gb/s ports (From Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z690 chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for M.2 slots from Z690 Chipset Supports Intel Smart Response Technology for Intel Core processors RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
    Warranty Information
    Manufacturing Warranty 3 years

    Description

    MSI MAG Z690 TOMAHAWK WIFI 12th Gen ATX Motherboard

     The MSI PRO Z690-A WiFi Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6400 (OC) MHz. It delivers a Lightning Fast Game experience with PCIe5.0 places, Lightning Gen4 x4M. 2, USB3.2 Gen 2x2. It features2.5 G LAN with LAN Manager and Intel Wi-Fi 6 Result. Upgraded network result for professional and multimedia use. Delivers a secure, stable and fast network connection. It comes with an Enhanced Power Design. It's equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/ mk, fresh choke thermal pads, andM. 2 Shield Frozr are erected for a high- performance system andnon-stop gaming experience. The MSI PRO Z690-A WiFi comes upgraded network result for professional and multimedia use. Delivers a secure, stable and fast network connection.2.5 Gbps LAN provides inconceivable data transfer speed briskly than general Gigabit LAN. This is a decoration result for demanding druggies. It has an 8- subcaste PCB made of 2oz thickened bobby and garçon- grade position material. The MSI PRO Z690-A WiFi comes with 3 times of bond.
