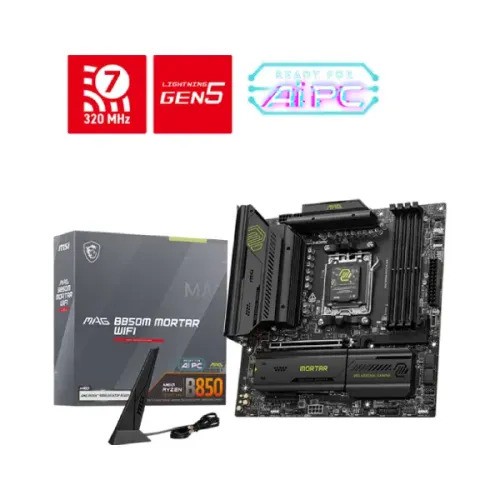

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Save: 4070৳
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
  • Stock: In Stock
  • Price:  32,600৳
  • Regular Price:  36,670৳
  • Product id:  5310
  • Brand: MSI
  • Model: MAG B850M MORTAR WIFI
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: MAG B850M MORTAR WIFI
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
  • Graphics Output: 1x HDMI, Storage: 3x M.2
  • Features: Realtek 8126-VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
View more info
Specification
Motherboard Basic Info
Form Factor mATX 243.84mmx243.84mm
Motherboard Basic Information
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B850
Expansion Slots
PCI 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Expansion Slots
M.2 Socket 3x M.2
Motherboard Memory Info
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB
Motherboard Graphics Info
Graphics 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports (MB)
USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3 slot • Supports up to PCIe 4.0 x2
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard

The MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard is engineered for gamers and PC builders who want powerful performance in a compact form factor. Built on the latest AMD B850 chipset, it supports AMD Ryzen™ 7000, 8000, and future AM5 processors, delivering excellent stability and next-generation computing power.

This motherboard features DDR5 memory support for higher speeds, improved bandwidth, and efficient multitasking. With PCIe 5.0 support, users can take advantage of next-gen graphics cards and ultra-fast NVMe SSDs. Multiple M.2 slots with MSI Shield Frozr heatsinks ensure consistent high performance and thermal efficiency.

Integrated Wi-Fi 6E and Bluetooth provide fast, low-latency wireless networking, while 2.5Gb LAN offers reliable wired connectivity for competitive gaming. Premium audio components deliver immersive sound, and MSI’s MAG military-grade components ensure long-term durability.

With its compact micro-ATX design, robust power delivery, and user-friendly EZ DIY features, the MSI MAG B850M MORTAR WIFI is ideal for high-performance gaming PCs and future-ready builds.
