| Motherboard Basic Info | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Motherboard Memory Info | |
| Slots | 4 |
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Maximum Memory | 192GB |
| Motherboard Memory Info | |
| Type | DDR5 |
| Connectivity | |
| Display Port | 1x DisplayPort |
| HDMI | 1x HDMI |
| Motherboard Graphics Info | |
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz |
| Connector & Ports (MB) | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek 2.5Gbps LAN |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 Years |

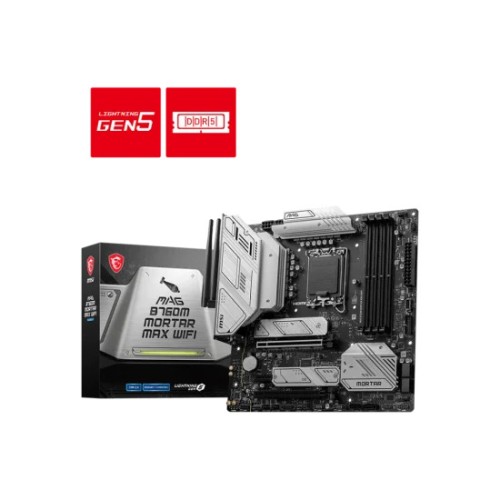

The MSI MAG B760M MORTAR MAX WIFI mATX Motherboard is now. You can buy the MSI MAG B760M MORTAR MAX WIFI mATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.
