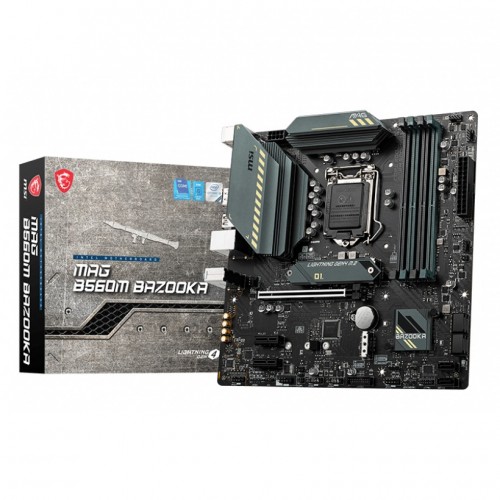

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard

Out Of Stock

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard

Stock: Out Of Stock
Product id: 2152
Brand: MSI
Model: MAG B560M BAZOOKA

Based on 0 reviews. - Write a review

Model: MAG B560M BAZOOKA
Supports 10th & 11th Gen Intel processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Extended Heatsink Design & M.2 Shield Frozr
Supports 2-Way AMD Crossfire

View more info

Specification

Motherboard Basic Info
Form Factor	Micro ATX Form Factor
Motherboard Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold, and Celeron Processors
Chipset	Intel B560 Chipset
Expansion Slots
PCI	1x PCIe x16 slot PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots PCI_E2 & PCI_E3 (From B560 chipset)
Expansion Slots
M.2 Socket	2x M.2 slots (Key M)
Memory Specifications
Type	DDR4
Motherboard Memory Info
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Motherboard Graphics Info
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports (MB)
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
USB (s)	Intel B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller connector
Supported Storage	6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU(From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices M2_2 slot(from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Warranty Information
Manufacturing Warranty	03 years Warranty

Description

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard

The MSI MAG B560M BAZOOKA Micro ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5066 (OC) MHz. Running at PCIe Gen4 x4 maximizes performance for NVMe grounded SSDs. It comes with Premium Thermal Solution. Extended Heatsink Design andM. 2 Shield Frozr are erected for high- performance systems andnon-stop workshop. It features2.5 G LAN with LAN Manager. Upgraded network result for professional and multimedia use. Delivers a secure, stable, and fast network connection. The motherboard is powered by a USB3.2 Gen2x2 regulator, offering noway ahead seen USB pets up to 20Gb/ s with USB Type-C. It has Audio Boost, Award your cognizance with plant- grade sound quality. It's supported withMulti-GPU. With Steel armor PCIe places. Supports 2- Way AMD Crossfire. It has 3 times of bond.

Review

What is the price of MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard in Bangladesh?

The MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard is Out Of Stock now. You can buy the MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: MAG B560M BAZOOKA
