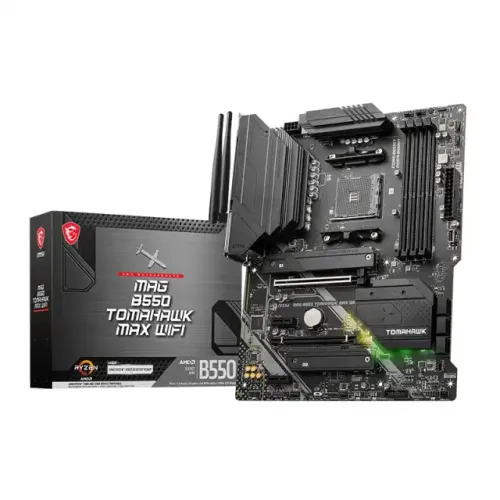

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

Stock:
Product id: 3389
Brand: MSI
Model: MAG B550 TOMAHAWK MAX WIFI

Based on 0 reviews. - Write a review

Model: MAG B550 TOMAHAWK MAX WIFI
Supported CPU: Ryzen 5000, 5000 G, 4000G, and 3000 Series for Socket AM4
Supported RAM: 4x DDR4, up to 5100+(OC) MHz
Graphics Output: 1x HDM, 1x DisplayPort
Features: 2x M.2, 2.5G LAN and AMD Wi-Fi 6E

View more info

Specification
Review

Specification

Motherboard Basic Info
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots
Max Shared Memory	16 GB
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Motherboard Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Chipset	AMD B550 Chipset
Memory Specifications
Type	DDR4
Motherboard Memory Info
Slots	4
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory	128GB
Connectivity
Display Port	1x DisplayPort
Motherboard Graphics Info
Graphics	1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Connector & Ports (MB)
HDMI	1x HDMI
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
Supported Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Warranty Information
Manufacturing Warranty	3 Years

Review

What is the price of MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard in Bangladesh?

The MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard is now. You can buy the MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: MSI MAG B550 TOMAHAWK MAX WIFI Motherboard Price in Bangladesh
