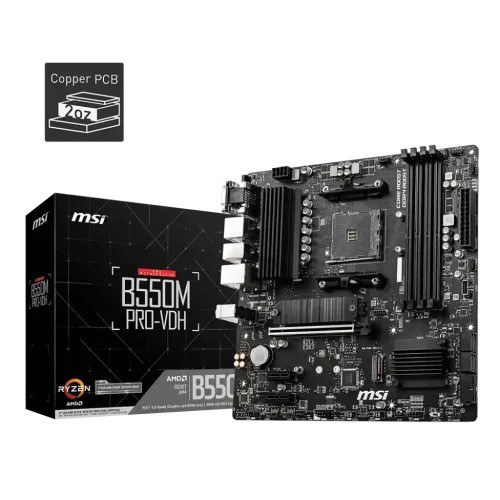

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
Save: 1210৳
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
  • Stock: In Stock
  • Price:  14,200৳
  • Regular Price:  15,410৳
  • Product id:  5901
  • Brand: MSI
  • Model: B550M Pro-VDH
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • PCB with 2OZ Thickened Copper
  • Supports AMD Ryzen 5000 & 3000 Series Processors
  • Model: B550M Pro-VDH
  • Supports DDR4 Memory, up to 4400(OC) MHz
View more info
Specification
Motherboard Basic Info
PCI 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Motherboard Basic Information
Supported CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD B550
Expansion Slots
M.2 Socket 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Memory Specifications
Type Dual-channel memory architecture
Graphics Specifications
Max Shared Memory 16GB
Motherboard Memory Info
Slots 4x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory 128GB
Motherboard Graphics Info
Graphics 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Connector & Ports (MB)
HDMI 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
USB (s) AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
Supported Storage AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Warranty Information
Manufacturing Warranty 03 Years Warranty
Description

The MSI B550M Pro-VDH is a feature-rich AMD AM4 Micro-ATX motherboard designed for gamers, creators, and PC enthusiasts seeking reliable performance and expandability. Powered by the AMD B550 chipset, it supports AMD Ryzen 5000, Ryzen 4000 G-Series, and Ryzen 3000 series processors, delivering excellent performance for modern computing needs. The motherboard features four DDR4 memory slots supporting up to 128GB of RAM and speeds up to 4400MHz (OC), ensuring smooth multitasking and gaming experiences.


With PCIe 4.0 support, dual M.2 slots, four SATA III ports, USB 3.2 connectivity, and Gigabit LAN, the MSI B550M Pro-VDH provides fast storage and reliable networking options. Additional features such as Flash BIOS Button, Audio Boost technology, and enhanced thermal solutions make it a dependable choice for both gaming and professional workloads. Its compact Micro-ATX form factor allows easy integration into a wide range of PC cases while maintaining excellent functionality and upgrade potential.
