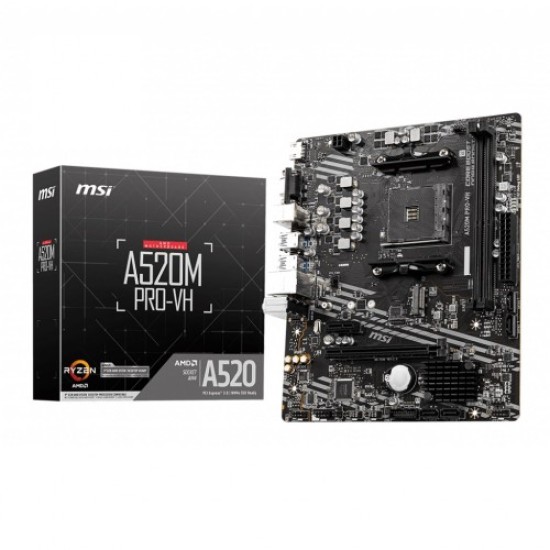

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard
Out Of Stock
MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  2237
  • SKU: 15
  • Brand: MSI
  • Model: A520M PRO-VH
Based on 0 reviews. - Write a review
  • Model: A520M PRO-VH
  • Supports Ryzen 5000 & 3000 Series
  • Supports DDR4, up to 4600(OC) MHz
  • Core Boost and DDR4 Boost
  • 2oz Thickened Copper PCB
View more info
Specification
Motherboard Basic Info
Max Shared Memory 16GB
Form Factor mATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Motherboard Basic Information
Supported CPU AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD A520 Chipset
Expansion Slots
PCI 1x PCIe 3.0 x1 slot 1x PCIe 3.0 x16 slot
Expansion Slots
M.2 Socket 1x M.2 slot (Key M) (from AMD Processor)
Memory Specifications
Type Dual-channel memory architecture
Motherboard Memory Info
Slots 2x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Motherboard Graphics Info
Graphics 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Connector & Ports (MB)
HDMI 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
USB (s) AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Ports 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
Supported Storage AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Warranty Information
Manufacturing Warranty 03 Years Warranty
Description

MSI A520MPRO-VH AMD AM4Micro-ATX Motherboard

 MSI A520MPRO-VH AMD AM4Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G- Series desktop processors. It supports DDR4 Memory, up to 4600( OC) MHz. Running at PCI- E Gen3 x4 maximizes performance for NVMe grounded SSDs. It featuresM. 2 Shield Frozr. Strengthened erected- inM. 2 thermal result. KeepsM. 2 SSDs safe while precluding throttling, making them run briskly. It comes with a decoration layout and digital power design to support more cores and give better performance. Advanced technology to deliver pure data signals for the stylish performance and stability. It comes with a 2oz Thickened Bobby PCB. An enhanced PCB design improves heat dispersion and performance trustability. Audio Boost rewards your cognizance with plant- grade sound quality. It features Dragon Center- A brand new software that integrates all MSI exclusive tools with a stoner-friendly stoner interface. It has 3  Years Warranty.


Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard in Bangladesh?

The MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard is Out Of Stock now. You can buy the MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: A520M PRO-VH
