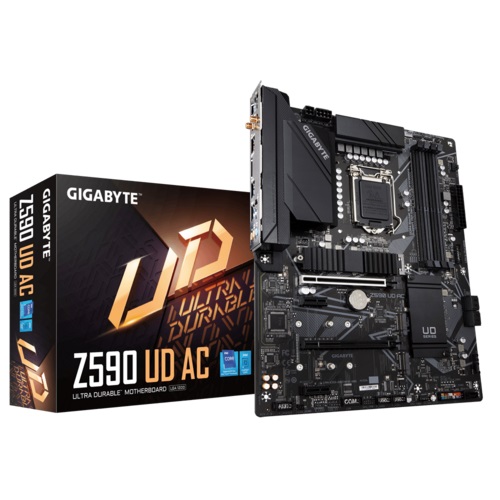

Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard

Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard
Out Of Stock
Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  2142
  • Brand: Gigabyte
  • Model: Z590 UD AC
Based on 0 reviews. - Write a review
  • Model: Z590 UD AC
  • Supports 11th and 10th Gen Intel Core Processors
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
  • Dual-Channel DDR4, 4 DIMMs
  • Onboard Intel 802.11ac Wireless & BT
View more info
Specification
Motherboard Basic Info
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Motherboard Basic Information
Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset Intel Z590 Express Chipset
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
Memory Specifications
Type Dual-channel memory architecture
Motherboard Memory Info
Supported Memory 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB (32 GB single DIMM capacity)
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports (MB)
USB (s) Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Q-Flash Plus button 5 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB Type-C header, with USB 3.2 Gen 1 support 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 5 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready
Warranty Information
Manufacturing Warranty 3 years
Description

Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard

 Gigabyte Z590 UD AC ATX Motherboard Supports 11th and 10th Gen Intel Core Series Processors. It features Binary ChannelNon-ECC Unbuffered DDR4, 4 DIMMs. It has Direct 12 1 Phases Digital VRM Result with 50A DrMOS and Shielded Memory Routing for Better Memory Overclocking. It comes with Enlarged VRM Heatsink with Air-Flow Grooving to Increased Face Contact and Fast2.5 GbE LAN with Bandwidth Management. It has Onboard Intel802.11 ac Wireless & BT with High-Gain Antenna. It also has TriadicUltra-Fast NVMe PCIe4.0 */3.0 x4M. 2 with Thermal Guard and USB3.2 Gen2 and Front USB Type-C for Fast and Protean Connections. Pre-installed IO Shield for Easy and Quick Installation makes it easy to use. The RGB FUSION2.0 withMulti-Zone Nontransferable LED Light Show Design, and support Nontransferable LED & RGB LED Strips. Smart Fan comes with 6 Features Multiple Temperature Detectors, and Mongrel Addict Heads with Addict STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 times bond.


Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard in Bangladesh?

The Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard is Out Of Stock now. You can buy the Gigabyte Z590 UD AC Intel 10th and 11th Gen ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.
