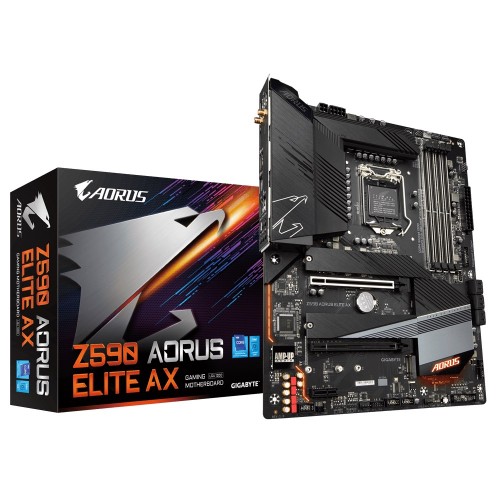

Name: GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard
Brand: Gigabyte
Availability: OutOfStock

Out Of Stock

GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard

Stock: Out Of Stock
Product id: 2144
Brand: Gigabyte
Model: Z590 AORUS Elite AX

Based on 0 reviews. - Write a review

Model: Z590 AORUS Elite AX
Supports 10th and 11th Gen Intel Core Processors
Advanced Thermal Design
Full PCI Express 4.0 Design
Intel WiFi 6 802.11ax 2T2R & BT5

View more info

Specification

Motherboard Basic Info
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Motherboard Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Chipset	Intel Z590 Express Chipset
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot
Expansion Slots
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2B_SB) 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB)
Memory Specifications
Type	DDR4
Motherboard Memory Info
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 0th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB (32 GB single DIMM capacity)
Motherboard Graphics Info
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports (MB)
USB (s)	1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2B_SB) 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Warranty Information
Manufacturing Warranty	3 Years

Description

GIGABYTE Z590 AORUS Elite Layoff Intel 10th and 11th Gen ATX Motherboard

The GIGABYTE Z590 AORUS Elite Layoff Intel 10th and 11th Gen ATX Motherboard comes with upgraded power result, inconceivable cooling design, all PCIe4.0 design and outstanding connectivity to elevate your gaming experience to the coming position. The motherboard uses an 12 1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100 digital regulator and fresh 8 4 Solid- leg CPU Power Connectors offer inconceivable perfection in delivering power to the motherboard's most power-empty and energy-sensitive factors, allowing suckers to get the absolute maximum performance from the new Intel 11th Gen CPU. With the stylish quality factors and GIGABYTE R&D design capability, the Z590 AORUS is a true beast among motherboards. A high- end product needs to be unborn- evidence so your system stays up-to- date with the rearmost technology. Z590 AORUS ELITE Layoff provides all coming generation network, storehouse, and WIFI connectivity to keep you up to speed. Hi-Res Audio certified, meaning that the product is able of reproducing frequentness up to 40kHz or above which ensures stoner with the stylish audio quality at all times. ALC1220 120dB (A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head- worn audio device, precluding issues similar as low volume and deformation. With the new VB series audio regulator, stream your voice to the world vibrantly with both front/ reverse microphone SNR up to 110/ 114dB (A). GIGABYTE Z590 AORUS Elite Layoff 11th Gen Motherboard features RGB FUSION2.0 and offers druggies the option to control onboard, external light strips, and/ or AORUS bias with RGB/ Nontransferable RGB LEDs to make their PC more unique and swish. GIGABYTE is estimable for its product continuity and high quality manufacturing process. Dispensable to say, we use the stylish factors we can find for the Z590 AORUS motherboard and support every niche to make each of them solid and durable. Good software goes hand in hand with perfect tackle. GIGABYTE motherboard whisked several useful and intuitive software to help druggies to control every aspect of motherboard.

Review

What is the price of GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard in Bangladesh?

The GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard is Out Of Stock now. You can buy the GIGABYTE Z590 AORUS Elite AX Intel 10th and 11th Gen ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: Z590 AORUS Elite AX
