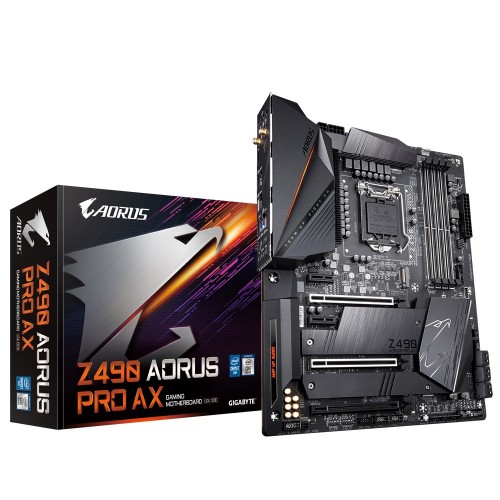

Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard

Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard
Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard
  • Stock:
  • Product id:  1267
  • Brand: Gigabyte
  • Model: Gigabyte Z490 Aorus Pro AX
  • Model: Z490 Aorus Pro AX
  • Chipset: Intel Z490 Express
  • Intel Socket LGA1200 for 10th Gen Processors
  • 4 x DIMM, Max. 128GB DDR4
  • CrossFire and SLI Supported
Specification
Motherboard Basic Info
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Max Shared Memory 512MB
Motherboard Basic Information
Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Chipset Intel Z490 Express Chipset
Expansion Slots
M.2 Socket 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB)
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots
Memory Specifications
Type Dual channel memory architecture
Motherboard Memory Info
Supported Memory Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports (MB)
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
USB (s) Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Audio Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button
Supported Storage 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Others
Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 Years
Description

Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard

Shards of the Void; Borders Disappear Fusing different materials and surface textures with negative space to make a juxtaposition and showcase a stylistic effect where the boundaries between components aren't clearly defined. It creates a multi-dimensional design that seemingly cuts through space and time. Z490 AORUS PRO AX motherboard uses a 12+1 phases digital CPU power design which incorporates both digital PWM Controller and DrMOS. These 100% digital controller and extra 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to urge absolutely the maximum performance from the new Intel 10-core CPU. With the simplest quality components and GIGABYTE R&D design capability, the Z490 AORUS may be a true beast among motherboards. Unthrottled performance is guaranteed by the improved thermal solution that comes with Fins-Array II, Heatpipe II, and Thermal Guards II. the great solution delivers excellent cooling . The Z490 AORUS PRO AX stays cool on VRMs and M.2 SSD even on full loading, making it best suited for enthusiasts, overclockers, and professional gamers. A high-end product must be future-proof so your system stays up-to-date with the newest technology. Z490 AORUS provides all next-generation network, storage, and WIFI connectivity to stay you up to hurry . GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to mention , we use the simplest components we will find for the Z490 AORUS motherboard and reinforce every slot to form each of them solid and sturdy . Good software goes hand in hand with perfect hardware. Z490 AORUS PRO AX bundled several useful and intuitive software to assist users to regulate every aspect of the motherboard.
