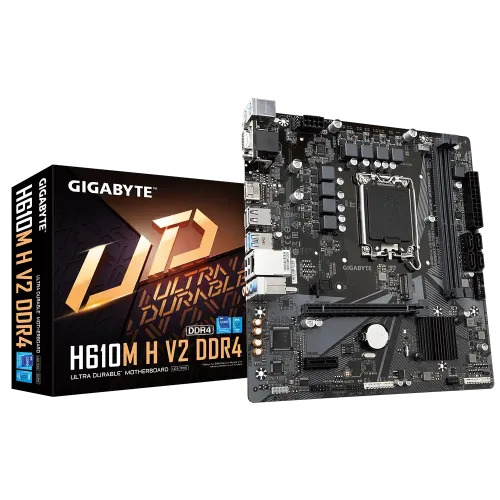

GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard

GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard
Out Of Stock
GIGABYTE H610M H V2 DDR4 13th Gen and 12th Gen Micro ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  3264
  • Brand: Gigabyte
  • Model: H610M H V2 DDR4
Based on 0 reviews. - Write a review
  • Supported CPU: 13th/12th Gen Intel Core Series Processors
  • Supported RAM: 2 x DDR4 up to 64 GB 3200MHz
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: Realtek GbE LAN
View more info
Specification
Motherboard Basic Info
Supported CPU LGA1700 socket: Support for 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Expansion Slots
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Motherboard Memory Info
Slots 2 x DDR DIMM socket
Supported Memory 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 64 GB (32 GB single DIMM capacity) of system memory Graphics
Motherboard Memory Info
Type DDR4
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports
Connector & Ports (MB)
HDMI 1 x HDMI 2.0 port
USB (s) Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Intel GbE LAN chip (1 Gbps/100 Mbps)
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub port
Supported Storage Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
Others
Special Features Support for APP Center * * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty 03 Years
