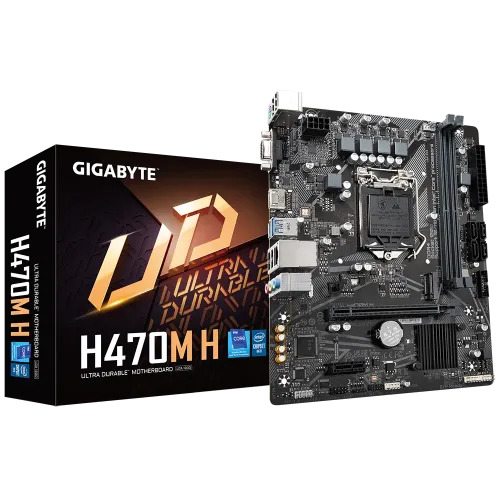

GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard

GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard
Out Of Stock
GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  3259
  • Brand: Gigabyte
  • Model: H470M H
Based on 0 reviews. - Write a review
  • Supported CPU: 11th/10th Gen Intel Core Processors (LGA1200)
  • Supported RAM: 2 x DIMM, Max. 64GB, DDR4
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: GbE LAN with Bandwidth Management
View more info
Specification
Motherboard Basic Info
Supported CPU
Chipset Intel H470 Express Chipset
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Motherboard Memory Info
Slots 2 x DIMM
Supported Memory 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * The D-Sub port is only available with the 10th Generation processors. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Motherboard Memory Info
Type DDR4
Connector & Ports (MB)
HDMI 1 x HDMI
USB (s) Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready
Others
Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty 03 Years
