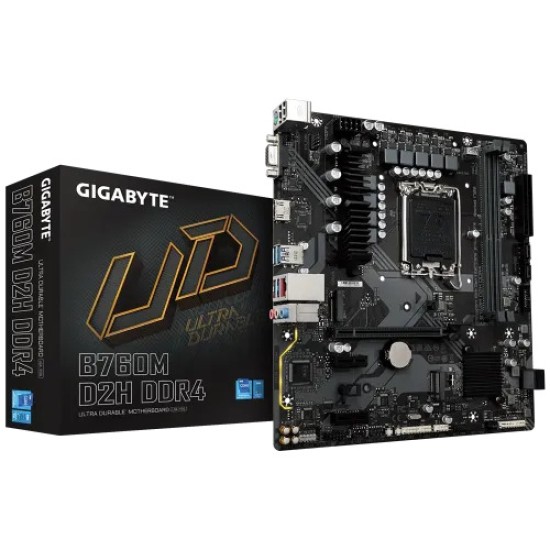

GIGABYTE B760M D2H DDR4 mATX Motherboard

GIGABYTE B760M D2H DDR4 mATX Motherboard
Save: 1230৳
GIGABYTE B760M D2H DDR4 mATX Motherboard
  • Stock: In Stock
  • Price:  14,500৳
  • Regular Price:  15,730৳
  • Product id:  3266
  • Brand: Gigabyte
  • Model: B760M D2H DDR4
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip
View more info
Specification
Motherboard Basic Info
Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Motherboard Memory Info
Type DDR4
Motherboard Memory Info
Slots 2
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64GB
Connectivity
Display Port 1x DisplayPort
HDMI 1x HDMI
Motherboard Graphics Info
Graphics ntegrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Connector & Ports (MB)
USB (s) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Audio 1 x front panel audio header 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Others
Special Features 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty 03 Years
Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of GIGABYTE B760M D2H DDR4 mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M D2H DDR4 mATX Motherboard in Bangladesh is 14,500৳ . You can buy the GIGABYTE B760M D2H DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
