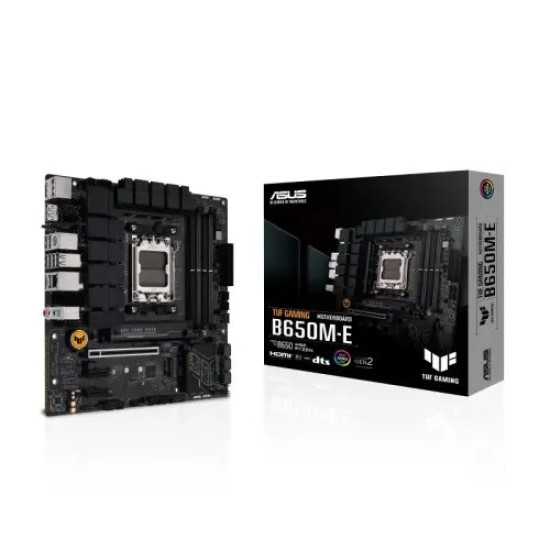

Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard
- Stock: In Stock
- Brand: Asus
- Model: TUF GAMING B650M-E
Specification
| Motherboard Basic Info | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots |
| Memory Specifications | |
| Type | DDR5 |
| Motherboard Memory Info | |
| Slots | 4 DIMMs |
| Supported Memory | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
| Maximum Memory | 192GB |
| Motherboard Graphics Info | |
| Graphics | 2 x DisplayPort 1 x HDMITM port |
| Connector & Ports (MB) | |
| HDMI | 1x HDMI |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
| Others | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
The Asus TUF GAMING B650M-E AMD AM5 micro-ATX Motherboard is a powerful, durable, and feature-rich motherboard built for gamers and PC enthusiasts who seek performance, stability, and value. Designed to support AMD Ryzen 7000 series processors with the latest AM5 socket, this motherboard delivers next-gen performance with support for DDR5 memory and PCIe 5.0 technology.
Crafted with military-grade components, the Asus TUF B650M-E ensures long-term reliability and stability. The optimized power design includes robust VRMs, high-quality capacitors, and enhanced cooling solutions, making it ideal for extended gaming sessions or high-performance workloads. Whether you're gaming, streaming, editing, or multitasking, this board delivers top-tier efficiency.
The board supports dual-channel DDR5 RAM up to 128GB, allowing ultra-fast memory bandwidth and performance tuning for gamers and content creators. Additionally, the PCIe 5.0 x16 slot ensures lightning-fast GPU connectivity, ideal for high-end gaming graphics cards and future-proofing your system. For storage, it features multiple M.2 slots and SATA ports, enabling faster boot and load times for your operating system and games.
Connectivity is another strong point of the TUF GAMING B650M-E. With high-speed USB ports, including USB 3.2 Gen 2 Type-A and Type-C, and a 2.5Gb Ethernet port, users can experience faster data transfers and seamless online gaming or streaming. The Realtek 7.1 HD Audio codec ensures crystal-clear sound, making your gaming experience more immersive.
Aesthetically, the TUF B650M-E maintains the rugged TUF Gaming design with subtle RGB accents and durable build quality. It’s compatible with ASUS Aura Sync, so users can customize RGB lighting to sync with other Aura-compatible components, creating a personalized gaming setup.
In terms of software, the board includes ASUS Armoury Crate, an all-in-one software utility for driver updates, system monitoring, and lighting control. It also includes BIOS FlashBack™ and Q-LED for easy troubleshooting and future BIOS updates without needing a CPU.
Whether you're building a new AM5 system or upgrading, the Asus TUF GAMING B650M-E offers the perfect balance of performance, durability, and value in a compact micro-ATX form factor. It’s an ideal choice for gamers, system builders, and power users in Bangladesh and beyond looking for premium features at a competitive price.
