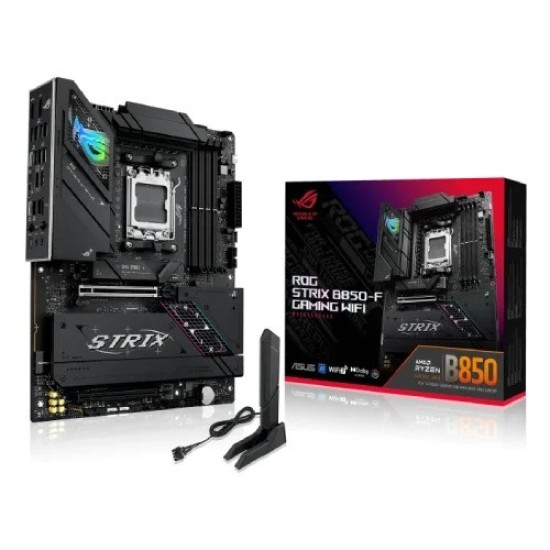

Asus ROG STRIX B850-F GAMING WIFI AM5 ATX Motherboard
- Stock: In Stock
- Brand: Asus
- Model: ROG STRIX B850-F GAMING WIFI
Specification
| Motherboard Basic Info | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm) |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot with Q-Rlease Slim |
| Memory Specifications | |
| Type | DDR5 |
| Motherboard Memory Info | |
| Supported Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Maximum Memory | 128GB |
| Motherboard Graphics Info | |
| Graphics | 1 x HDMI™ port*** 1 x USB 10Gbps ports support USB Type-C® display outputs**** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports max. 4K@60Hz as specified in DisplayPort 1.4a ***** VGA resolution support depends on processors' or graphic cards' resolution. |
| Connector & Ports (MB) | |
| HDMI | 1x HDMI 2.1 |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port(s) (1 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Extra Flow Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Back Panel I/O Ports 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x FlexKey button |
| Supported Storage | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* * Specifications vary by CPU types. |
| Others | |
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |
| Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |
Description
Asus ROG STRIX B850-F GAMING WIFI AM5 ATX Motherboard – Built for Power, Designed for Gamers
The Asus ROG STRIX B850-F GAMING WIFI AM5 ATX Motherboard is engineered to deliver exceptional performance, aesthetics, and reliability for gamers, creators, and power users. Built on the powerful AMD B850 chipset, it supports the latest AMD Ryzen 8000 and 7000 Series processors with the advanced AM5 socket, ensuring you’re ready for both current and future gaming needs.
With support for high-speed DDR5 memory, this motherboard allows blazing-fast data transfer, improved efficiency, and better multitasking performance. It’s designed for gamers who demand low latency, high bandwidth, and stability during intensive workloads or long gaming sessions.
The ROG STRIX B850-F features PCIe 5.0 x16 support for next-gen GPUs and dual PCIe 4.0 M.2 slots for lightning-fast NVMe SSD storage. These ensure super-fast boot times, quick game loading, and smooth application performance. Heatsinks on M.2 slots and VRM components ensure excellent cooling, even under load.
For connectivity, this motherboard comes packed with features like WiFi 6E for fast, low-latency wireless networking, 2.5G Ethernet for stable wired gaming, and Bluetooth 5.3 for seamless peripheral pairing. With USB 3.2 Gen 2x2 Type-C, multiple USB 3.2 ports, HDMI 2.1, and DisplayPort 1.4, you get extensive I/O options for displays, peripherals, and storage.
The ROG STRIX series is known for its premium design, and this board doesn't disappoint. It features bold RGB lighting with Aura Sync support, a sleek matte-black PCB, and reinforced SafeSlots for GPU durability. The aggressive ROG aesthetic is ideal for building a high-end gaming setup.
Internally, the 14-phase power delivery system, premium alloy chokes, and high-end capacitors ensure stable and clean power delivery to your CPU, ideal for overclocking and performance tuning. Cooling features include AI Cooling II, dedicated fan headers, and robust VRM and chipset heatsinks to keep temperatures in check.
The BIOS is user-friendly, offering both EZ Mode for beginners and advanced settings for experienced users. Asus’ Armoury Crate software also allows easy driver updates, RGB customization, and system monitoring—all in one place.
Whether you’re building a competitive esports rig or a high-performance streaming PC, the Asus ROG STRIX B850-F GAMING WIFI offers the perfect balance of performance, reliability, and style.
Key Features:
- AM5 socket with AMD B850 chipset
- Ryzen 8000/7000 CPU support
- DDR5 memory support
- PCIe 5.0 for GPU, dual M.2 PCIe 4.0 slots
- WiFi 6E, 2.5Gb Ethernet, Bluetooth 5.3
- USB 3.2 Gen 2x2, HDMI 2.1, DisplayPort 1.4
- 14-phase power delivery, AI Cooling II
- Aura Sync RGB, SafeSlot GPU support
Perfect For: Gamers, streamers, and high-performance users in Bangladesh who want reliable AM5 gaming performance at a competitive price.
