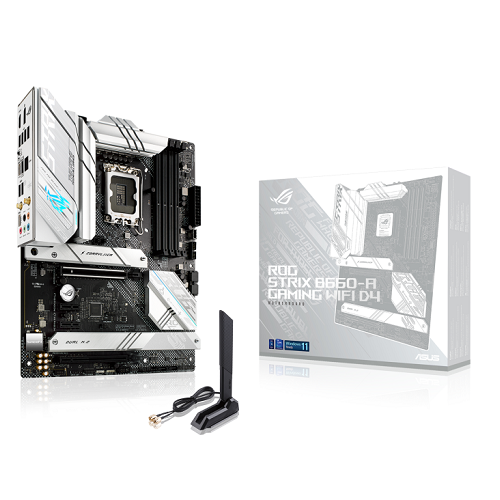

ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard

ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard
Out Of Stock
ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  2204
  • Brand: Asus
  • Model: ROG STRIX B660-A GAMING WIFI
Based on 0 reviews. - Write a review
  • Model: ROG STRIX B660-A GAMING WIFI
  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • 12+1 power stages with ProCool power connectors
  • Integrated I/O cover and VRM heatsinks
  • DDR5 Overclocking Strength
View more info
Specification
Motherboard Basic Info
BIOS 192 Mb Flash ROM, UEFI AMI BIOS
Motherboard Basic Information
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset B660
Expansion Slots
PCI Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
Memory Specifications
Type DDR5
Motherboard Memory Info
Supported Memory 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture OptiMem II
Motherboard Graphics Info
Graphics 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports (MB)
USB (s) Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Warranty Information
Manufacturing Warranty 3 years
Description

ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard

 The Asus ROG STRIX B660-A GAMING WIFI Intel 12th Gen Motherboard provides an optimal power result, 12 1 power stages with ProCool power connections, high- quality amalgamation chokes, and long- lasting capacitors to supportmulti-priced CPUs. It features an Optimized Thermal Design. Integrated I/ O cover, VRM heatsinks with high-conductivity thermal pads, and three integratedM. 2 heatsinks. This motherboard offers high- performance networking. Intel WiFi 6 (802.11 layoff) and Intel Ethernet2.5 Gb with ASUS LANGuard. Better gaming connectivity is handed by the Asus ROG STRIX B660-A GAMING WIFI Intel 12th Gen Motherboard. It supports HDMI2.1 and DisplayPort1.4 affair, as well as threeM. 2 places and USB3.2 Gen 2x2 Type-C. To ease setup and boost performance, this motherboard has Smart Control, ASUS Exclusive AI cooling, AI networking, and 2- way noise reduction. It boasts an easy-to- use design, anM. 2 latch, apre-mounted I/ O guard, a BIOS FlashBack button, and a Q-LED. It boasts unexampled customizability, ASUS unique Air Sync RGB lighting, one RGB title, and three Gen 2 nontransferable heads. The Asus ROG STRIX B660-A GAMING WIFI comes with a 03- times bond.


Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard in Bangladesh?

The ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard is Out Of Stock now. You can buy the ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: ROG STRIX B660-A GAMING WIFI
