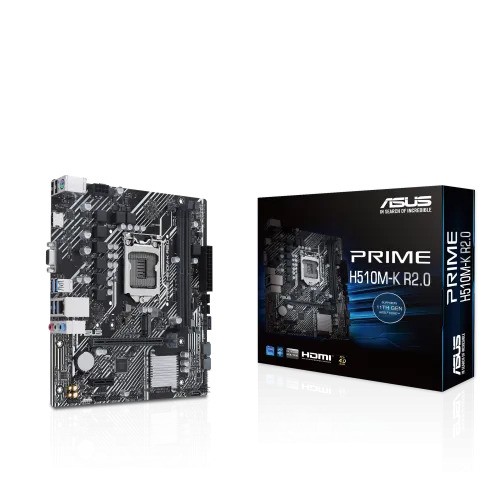

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
Out Of Stock
ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  3745
  • Brand: Asus
  • Model: PRIME H510M-K R2.0
  • Model: PRIME H510M-K R2.0
  • Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
  • Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
  • Graphics Output: 1x HDMI port, 1x VGA port
  • Features: 1 x Realtek 1Gb Ethernet
Specification
Motherboard Basic Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Motherboard Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H470 Chipset
Expansion Slots
PCI Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
Expansion Slots
M.2 Socket Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory Specifications
Type DDR4
Motherboard Memory Info
Slots 2 x DIMM
Supported Memory DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Motherboard Graphics Info
Graphics Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports (MB)
HDMI 1x HDMI 1.4
USB (s) Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet port
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Warranty Information
Manufacturing Warranty 3 years
Description

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard

The ASUS PRIME H510M-K R2.0 is a versatile micro-ATX motherboard designed for compatibility with both 10th and 11th Gen Intel processors through its LGA 1200 socket. Featuring an Intel H510 chipset, this motherboard supports ultrafast connectivity with PCIe 4.0, a 32Gbps M.2 slot for rapid storage, 1 Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A ports for quick data transfer. For cooling, it includes a PCH heatsink and FAN Xpert technology to ensure optimal thermal management. Additionally, the motherboard offers 5X Protection III, a suite of hardware safeguards that provides overvoltage, short-circuit, and other protective features for enhanced durability and stability. This combination of features makes the ASUS PRIME H510M-K R2.0 a reliable and efficient choice for building a high-performance computing system.

Buy ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard from Sell Tech

In Bangladesh, you can get original ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard From Sell Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Sell Tech Shop to get yours at lowest price. The ASUS PRIME H510M-K R2.0 Motherboard comes with 3 years warranty.
