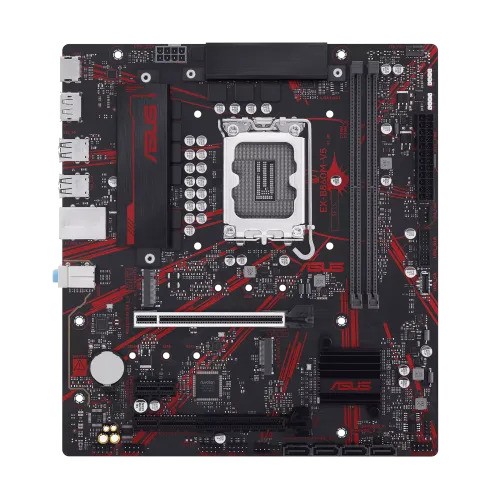

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
Save: 1870৳
Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
  • Stock: In Stock
  • Price:  20,700৳
  • Regular Price:  22,570৳
  • Product id:  4157
  • Brand: Asus
  • Model: EX-B860M-V5
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: EX-B860M-V5
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 2x DDR5, Max 128GB, 8800+MT/s (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
  • Features: 2x M.2, Realtek 2.5Gb LAN
View more info
Specification
Motherboard Basic Info
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Motherboard Basic Information
Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
Expansion Slots
PCI Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Expansion Slots
M.2 Socket 2x M.2
Memory Specifications
Type DDR5
Motherboard Memory Info
Supported Memory 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory Maximum Memory Capacity 128GB
Motherboard Graphics Info
Graphics 1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports (MB)
HDMI 1x HDMI 2.1
USB (s) Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Others
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard
Warranty Information
Manufacturing Warranty 3 Year warranty
Description

The Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard is a powerful and durable motherboard designed for gamers, content creators, and everyday PC users who seek reliability, performance, and protection in a compact form factor. Built on the Intel B860 chipset, this motherboard supports the latest Intel 14th, 13th, and 12th Gen processors using the LGA 1851 socket, delivering cutting-edge speed and responsiveness.

This micro-ATX motherboard is optimized for stability and efficiency, making it an ideal choice for users who demand excellent performance without compromising on space. It supports DDR5 memory up to 128GB, ensuring blazing-fast data transfer rates and better multitasking. Whether you're gaming, streaming, or working on high-end applications, the EX-B860M-V5 keeps everything running smoothly.

Designed under Asus’s renowned TUF (The Ultimate Force) standards, this motherboard comes equipped with military-grade components, anti-surge protection, and a stainless steel back I/O panel, ensuring long-lasting durability and resistance to corrosion. The 5X Protection III suite adds an extra layer of security, giving users peace of mind for long-term use.

Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard in Bangladesh?

The latest price of Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard in Bangladesh is 20,700৳ . You can buy the Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
