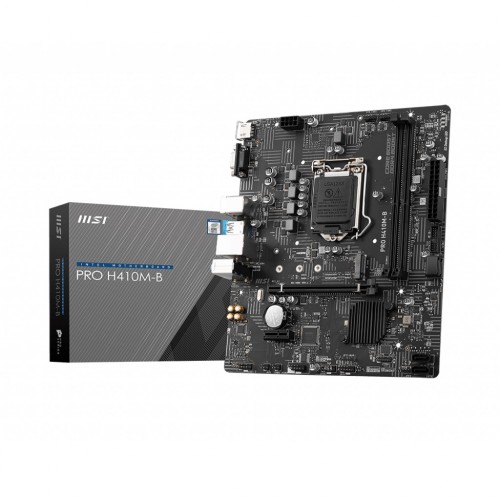

MSI PRO H410M-B 10th Gen Micro-ATX Motherboard

MSI PRO H410M-B 10th Gen Micro-ATX Motherboard
Out Of Stock
MSI PRO H410M-B 10th Gen Micro-ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  2146
  • SKU: 15
  • Brand: MSI
  • Model: PRO H410M-B
  • Model: PRO H410M-B
  • Supports 10th Gen Intel Processor
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost, DDR4 Boost, Turbo M.2
  • 4x SATA 6Gb/s ports, 1x M.2 slot
Specification
Motherboard Basic Info
Form Factor m-ATX Form Factor 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm)
Motherboard Basic Information
Supported CPU Supports 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200
Chipset Intel H510 Chipset
Expansion Slots
PCI 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH)
Expansion Slots
M.2 Socket 1x M.2 slot (Key M, from H510 chipset)
Memory Specifications
Type DDR4
Motherboard Memory Info
Slots 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Up to 64GB
Motherboard Graphics Info
Graphics 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
Connector & Ports (MB)
HDMI 1x HDMI 1.4 port
USB (s) Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (support additional 2 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper
Supported Storage 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M, from H510 chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Warranty Information
Manufacturing Warranty 3 years
Description

One of The Best Motherboards For Intel 10th Gen Processor is  MSI PRO H410M-B 10th GenMicro-ATX Motherboard. The MSI PRO H410M-B Motherboard supports 10th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 2933 (Max) MHz. This motherboard helps druggies work smarter by delivering an effective and productive experience. It features tons of accessible and smart designs for DIY druggies, innumerous system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy indeed the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. It has a VGA harborage, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz. It also has an HDMI1.4 harborage, supports a maximum resolution of 4K 30Hz. The MSI PRO H410M-B lets you manage pets and temperatures for all your system and CPU suckers. Total Fan Control allows you to check your primary system characteristics in a simplified visual interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will acclimate the addict pets. The most important thing about DIY is expandability. MSI PRO H410M-B features similar as stable LAN, briskly storehouse and USB transfer speed, and other expandable connectors are ready to enlarge your inflexibility. The MSI PRO H410M-B comes with 3 Years Warranty
