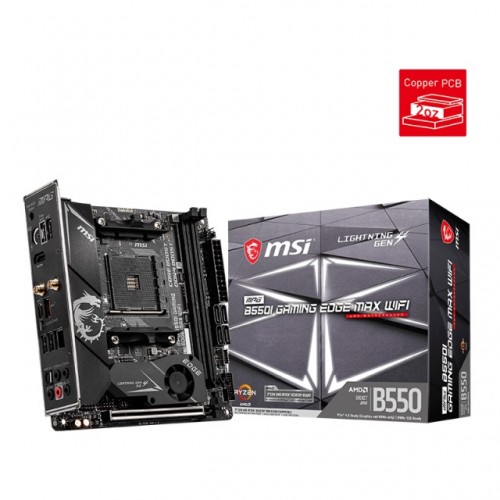

MSI MPG B550I GAMING EDGE MAX AM4 Mini-ITX Motherboard

Out Of Stock

MSI MPG B550I GAMING EDGE MAX AM4 Mini-ITX Motherboard

Stock: Out Of Stock
Product id: 3406
Brand: AMD
Model: MPG B550I GAMING EDGE MAX

Based on 0 reviews. - Write a review

Model: MPG B550I GAMING EDGE MAX
Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors
Supports DDR4, up to 4600(OC) MHz
8+2+1 Digital Power Design
Premium Thermal Solution

View more info

Specification
Review

Specification

Motherboard Basic Info
PCI	1x PCIe 4.0 / 3.0 x16 slot
Max Shared Memory	2048 MB
Form Factor	Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Motherboard Basic Information
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Expansion Slots
M.2 Socket	2x M.2 slots [Key M] M2 1 slot [from AMD Processor] Supports PCIe 4.0/3.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot [from AMD B550 chipset] Supports PCIe 3.0x4 Supports 2280 storage devices
Memory Specifications
Type	DDR4
Motherboard Memory Info
Slots	2 x memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ 1DPC 2R max speed 4000 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports un-buffered memory
Maximum Memory	64GB
Connectivity
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz
Motherboard Graphics Info
Graphics	1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz
Connector & Ports (MB)
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector] 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector] AMD Processor 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	03 Years Warranty
