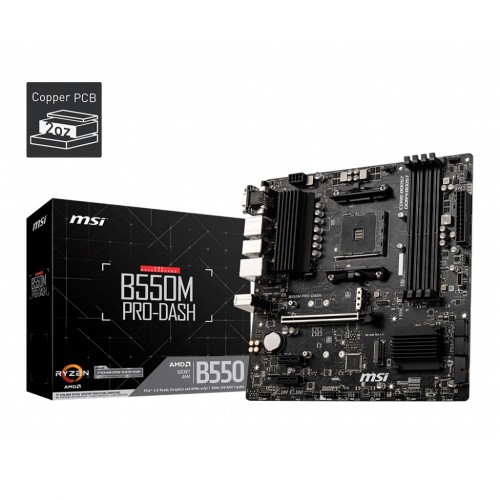

MSI B550M PRO-DASH AM4 Micro-ATX Motherboard

Upcoming

MSI B550M PRO-DASH AM4 Micro-ATX Motherboard

Stock: Upcoming
Product id: 3388
Brand: MSI
Model: B550M PRO-DASH

Based on 0 reviews. - Write a review

Model: B550M PRO-DASH
Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors
Supports DDR4, up to 2933 MHz
Premium Thermal Solution

View more info

Specification
Review

Specification

Motherboard Basic Info
PCI	1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1 2x PCIe 3.0 x1 slots
Max Shared Memory	16GB
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Motherboard Basic Information
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Expansion Slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Motherboard Memory Info
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933 MHz by JEDEC Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory	128GB
Motherboard Memory Info
Type	DDR4
Connectivity
VGA	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048 x 1280 @60Hz, 1920 x 1200 @60Hz
Display Port	1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Motherboard Graphics Info
Graphics	1x VGA port, supports resolution of 2048 x 1536 @ 50Hz, 2048 x 1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3
Connector & Ports (MB)
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111EPV 1Gbps LAN controller
Audio	Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Warranty Information
Warranty	03 Years Warranty
