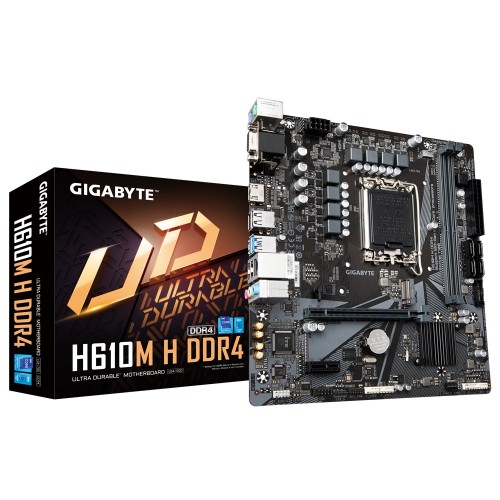

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
Save: 1060৳
Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard
  • Stock: In Stock
  • Price:  10,600৳
  • Regular Price:  11,660৳
  • Product id:  2129
  • Brand: Gigabyte
  • Model: H610M H DDR4
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: H610M H DDR4
  • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • NVMe PCIe 3.0 x4 M.2
View more info
Specification
Motherboard Basic Info
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Motherboard Basic Information
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel H610 Express Chipset
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Memory Specifications
Type DDR4
Motherboard Memory Info
Supported Memory 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 64 GB (32 GB single DIMM capacity) of system memory
Motherboard Graphics Info
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports
Connector & Ports (MB)
HDMI 1 x HDMI 2.0 port
USB (s) Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Supported Storage Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
Others
Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 years
Description

Gigabyte H610M H DDR4 12th Gen Micro ATX Motherboard

 The Gigabyte H610M H DDR4 features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual ChannelNon-ECC Unbuffered DDR4, 2 DIMMs. It has a 6 1 1 Mongrel Digital VRM Design. Solid capacitors to ameliorate flash response and minimize oscillation. It's equipped with Realtek 8118 LAN is a high- performance and friendly network chip for gaming players with automatic bandwidth allocation to insure the loftiest network precedence of the game or operation. It features solid plated ATX 12V 8pin power connectors to offer a stable power force during CPU overfilling. It has Smart Fan 6 Features Multiple Temperature Detectors, Mongrel Addict Heads with Addict STOP. It's designed with HDMI/ D-Sub Anchorages for Multiple Displays. The Gigabyte H610M H DDR4 motherboard comes with 3 times of bond.
